Fat Boy<sup>®</sup> 30th anniversary
® 30th anniversary"/>

Fat Boy® 30th anniversary

Description

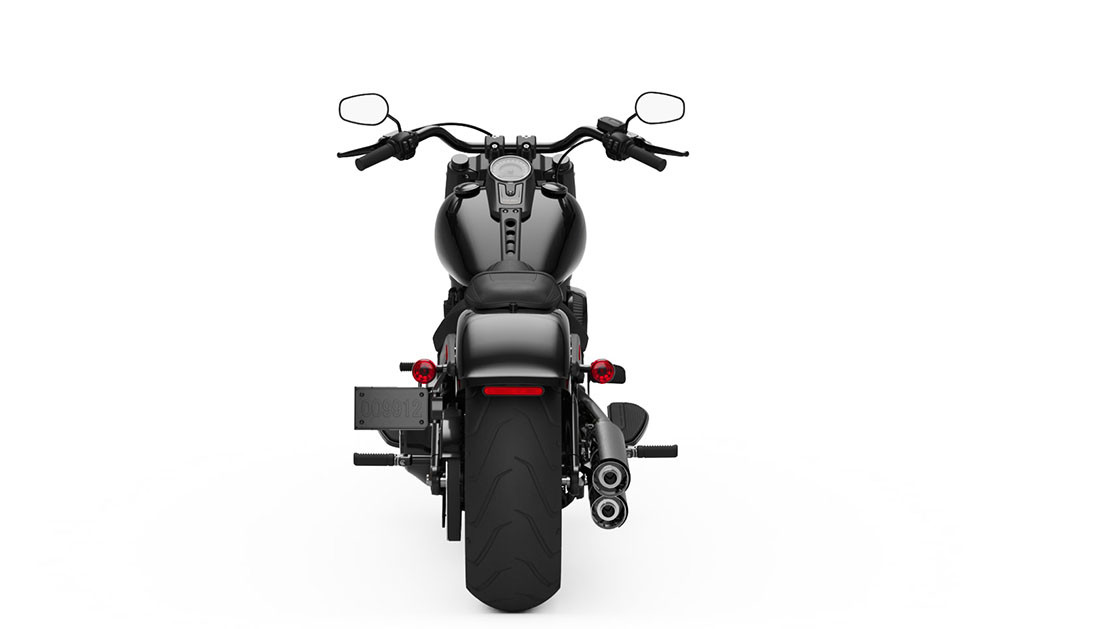

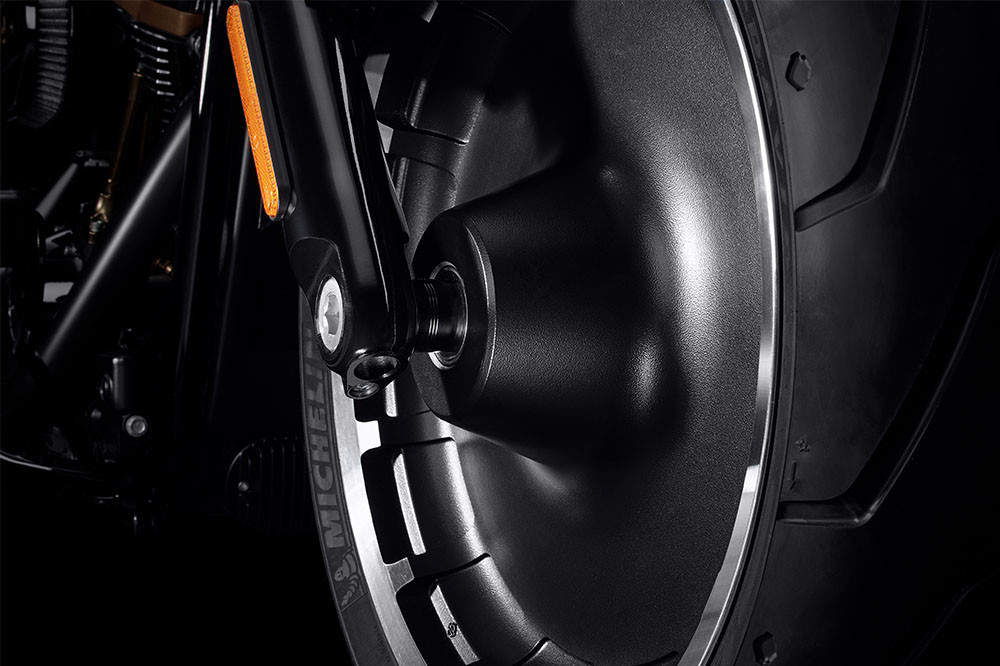

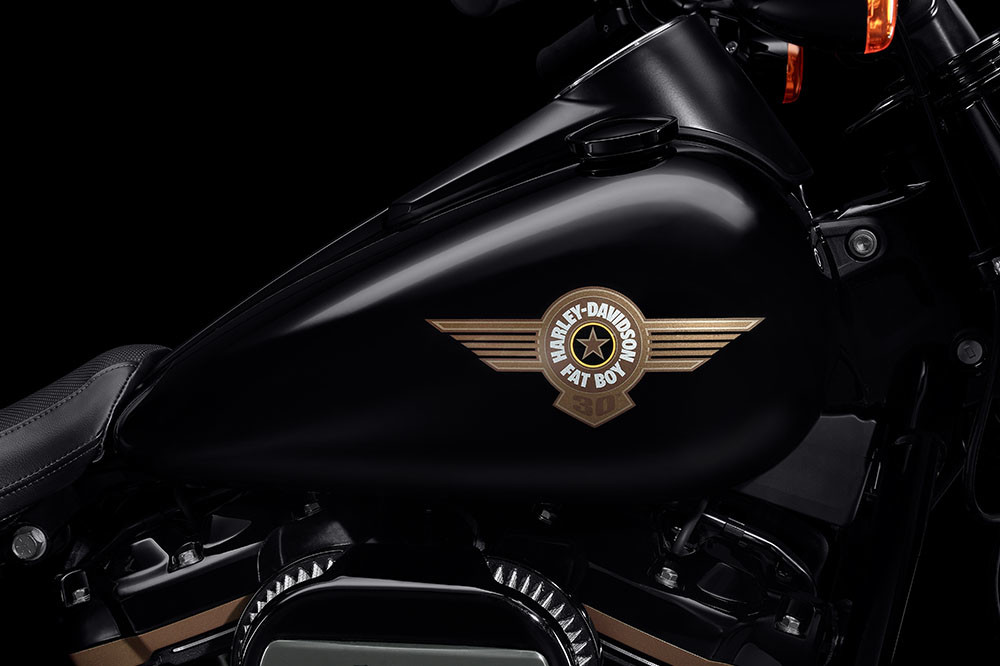

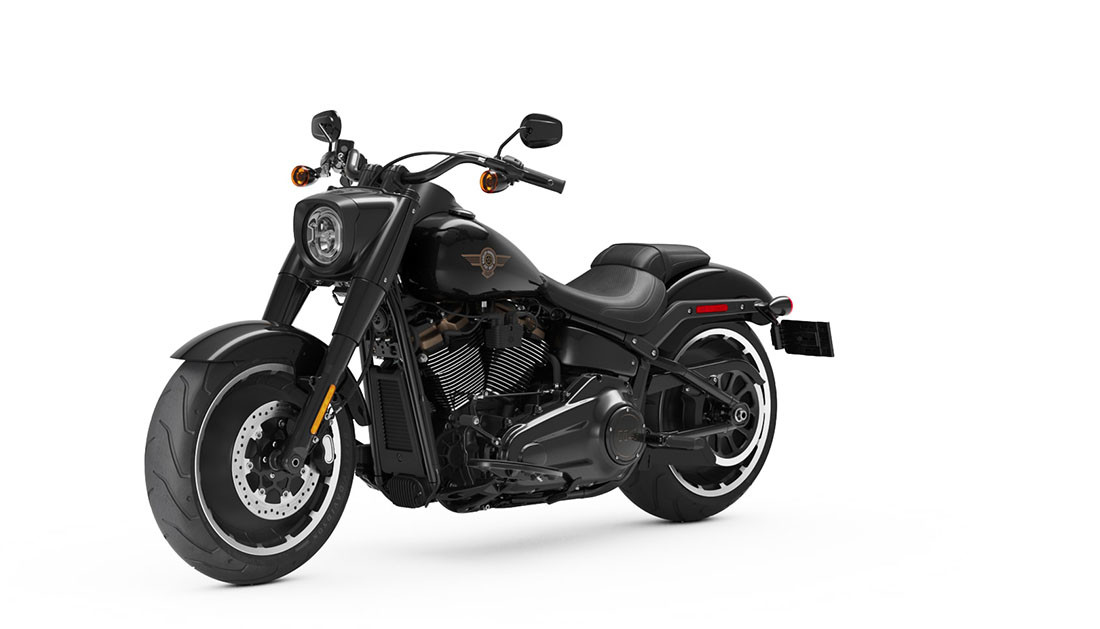

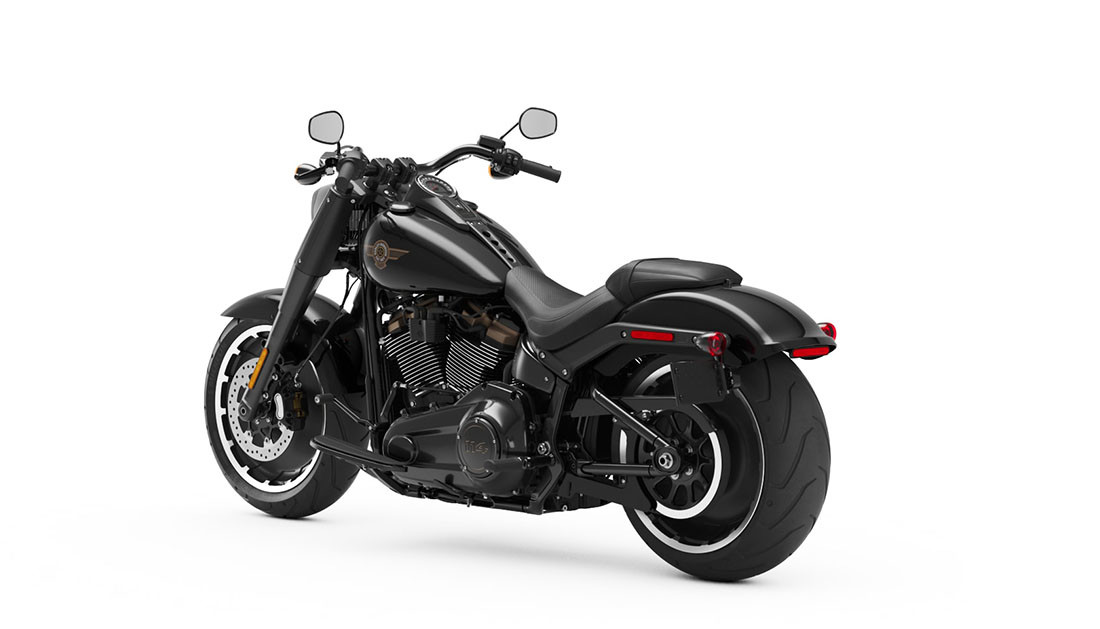

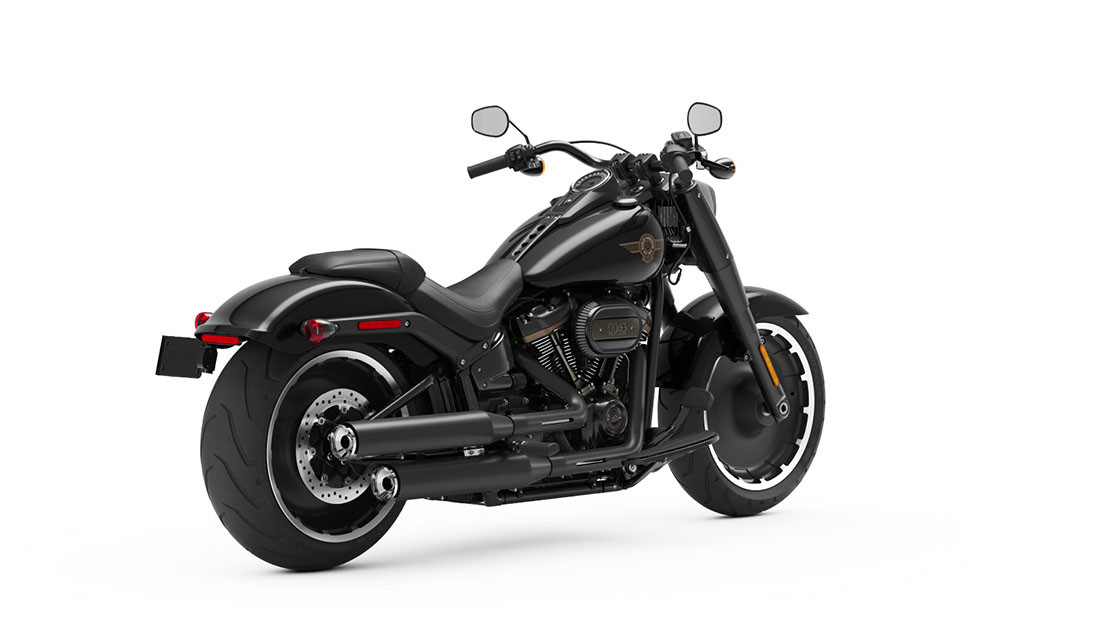

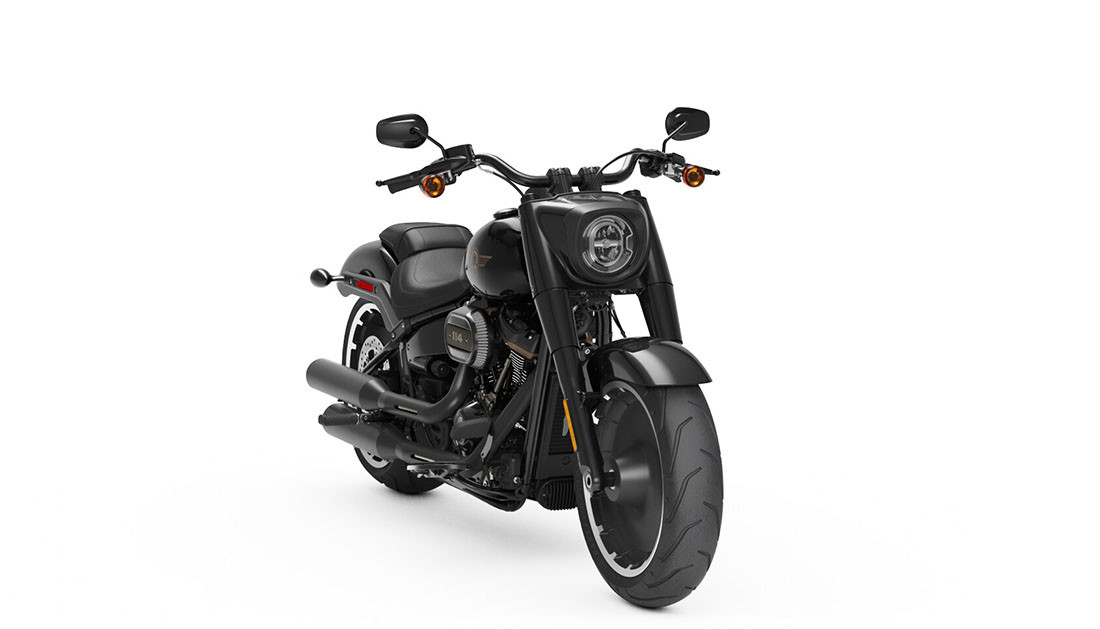

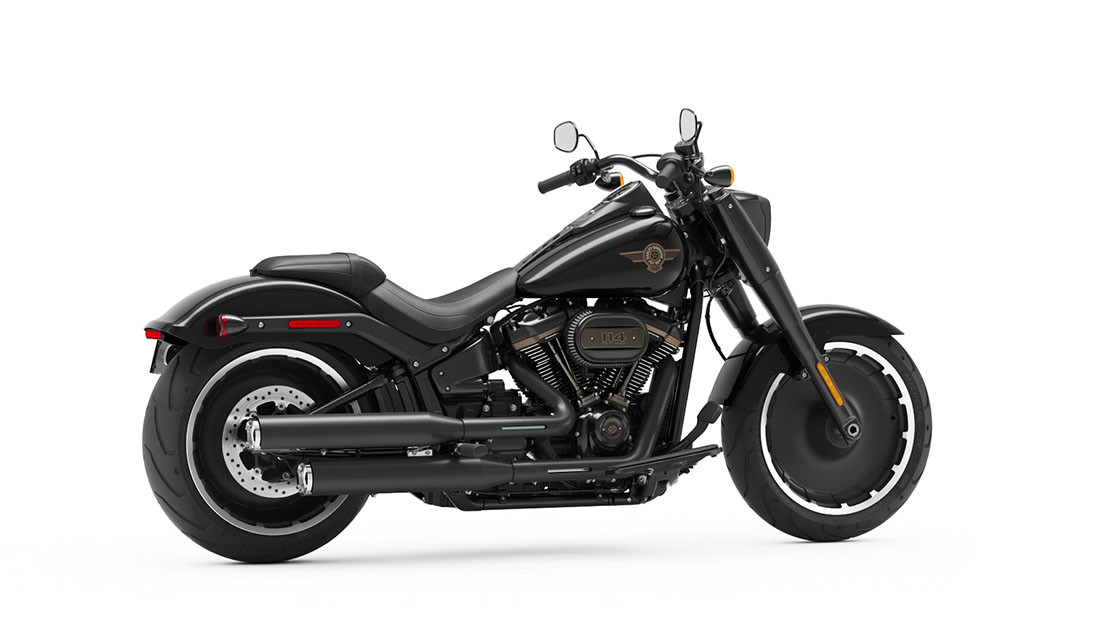

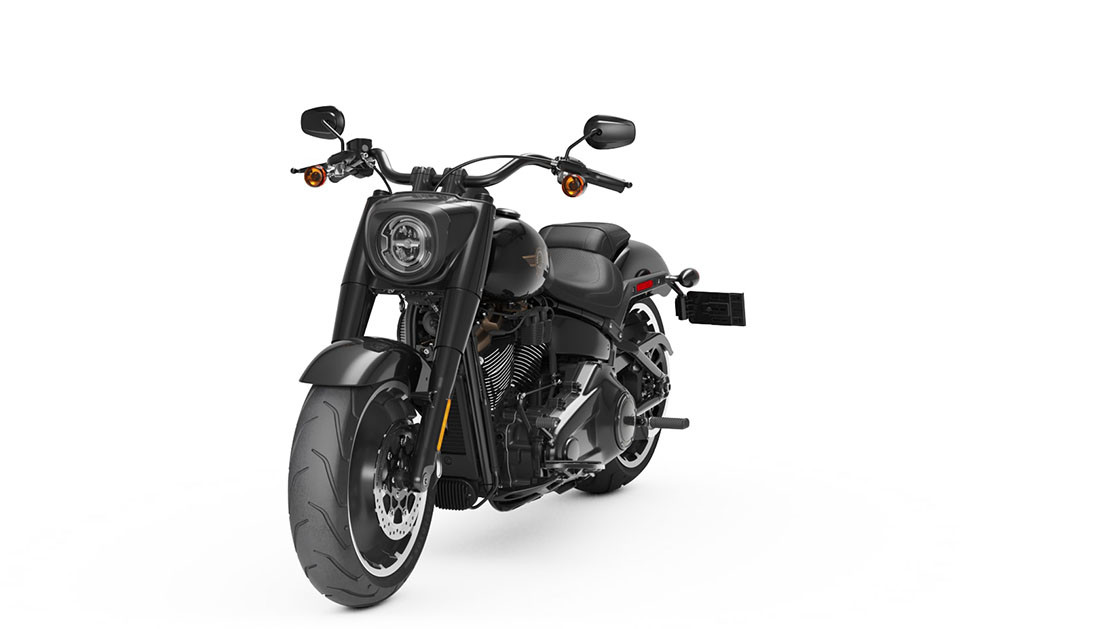

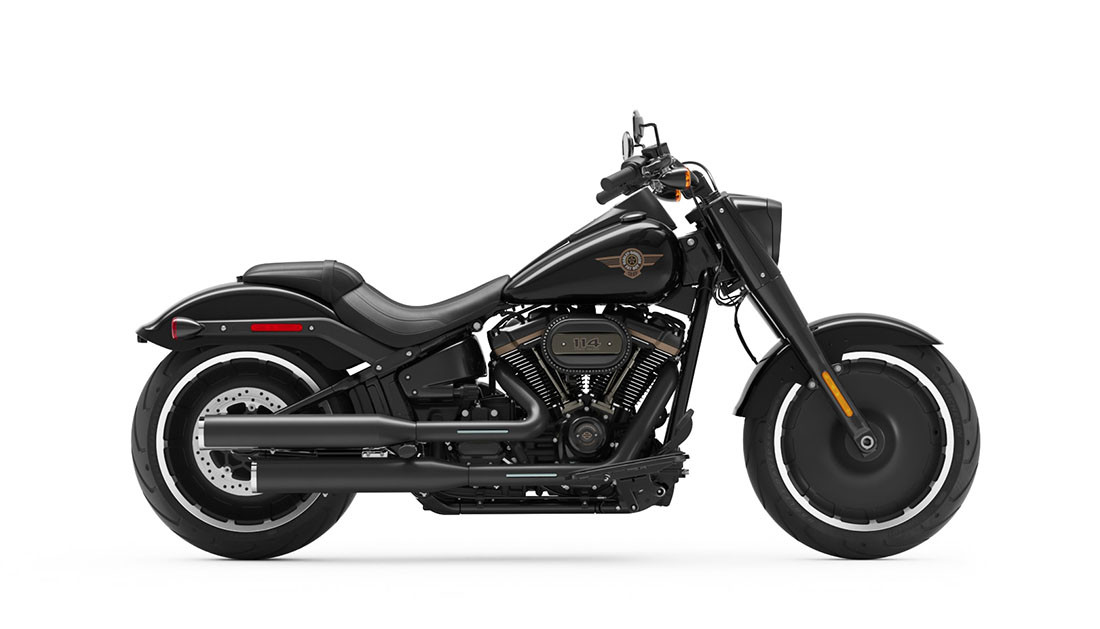

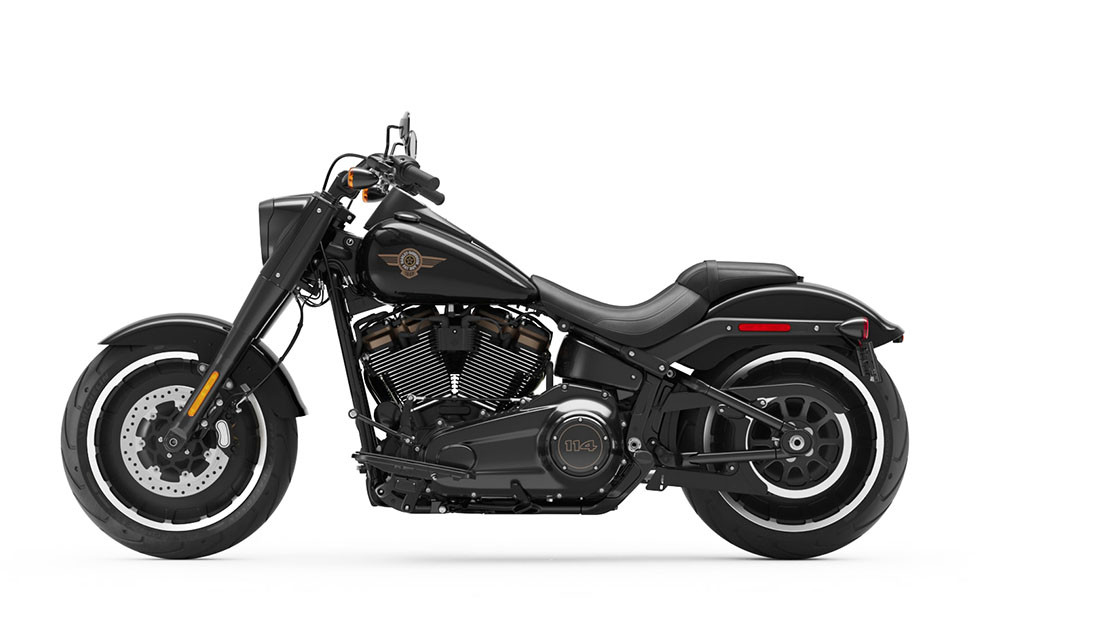

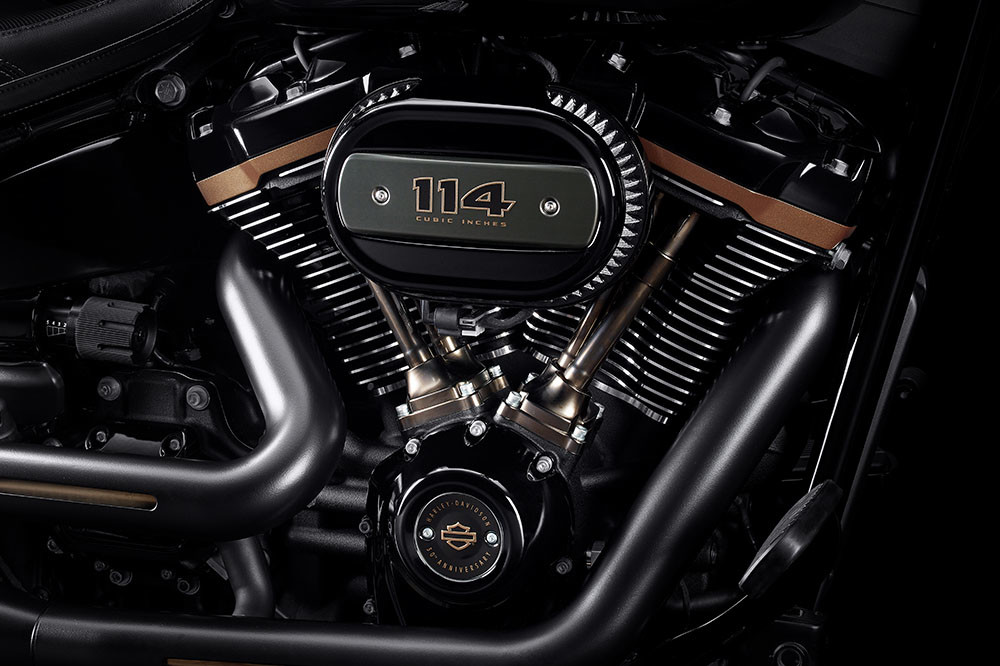

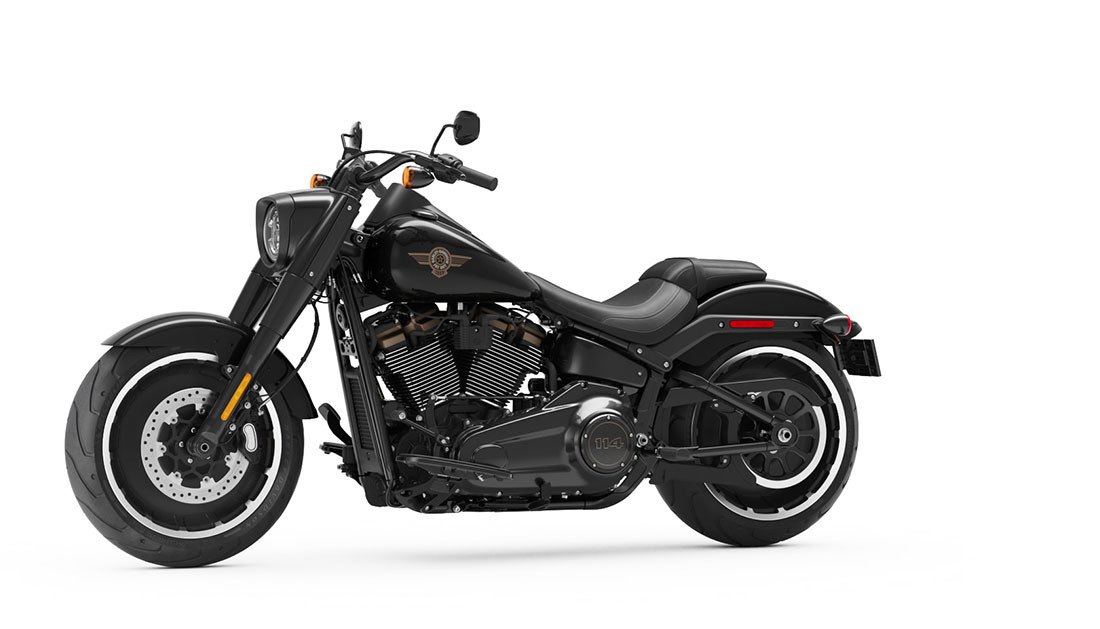

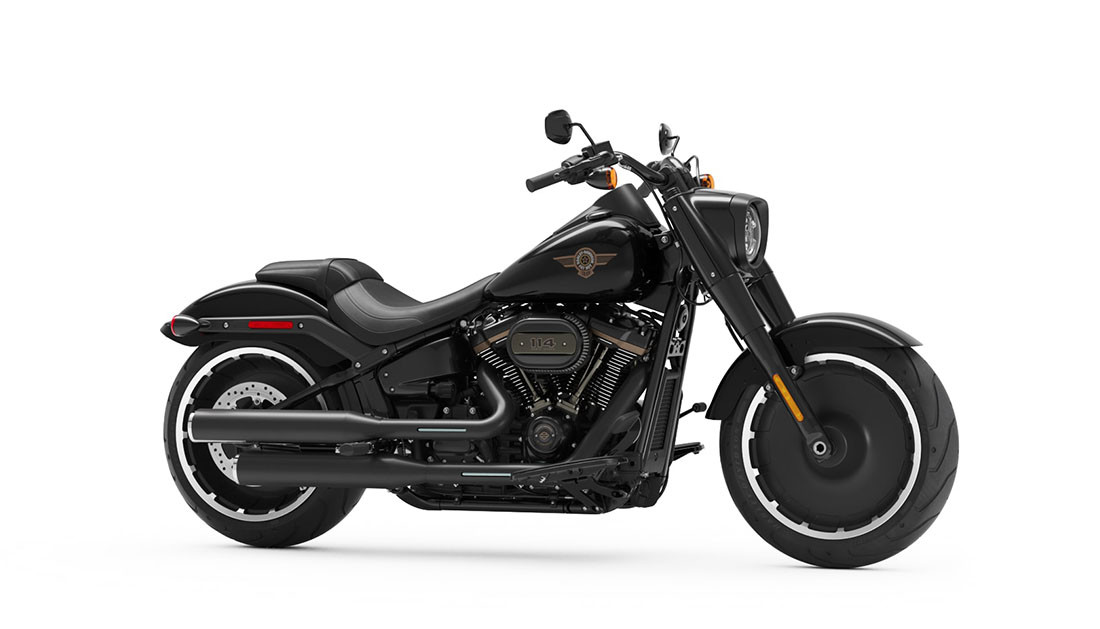

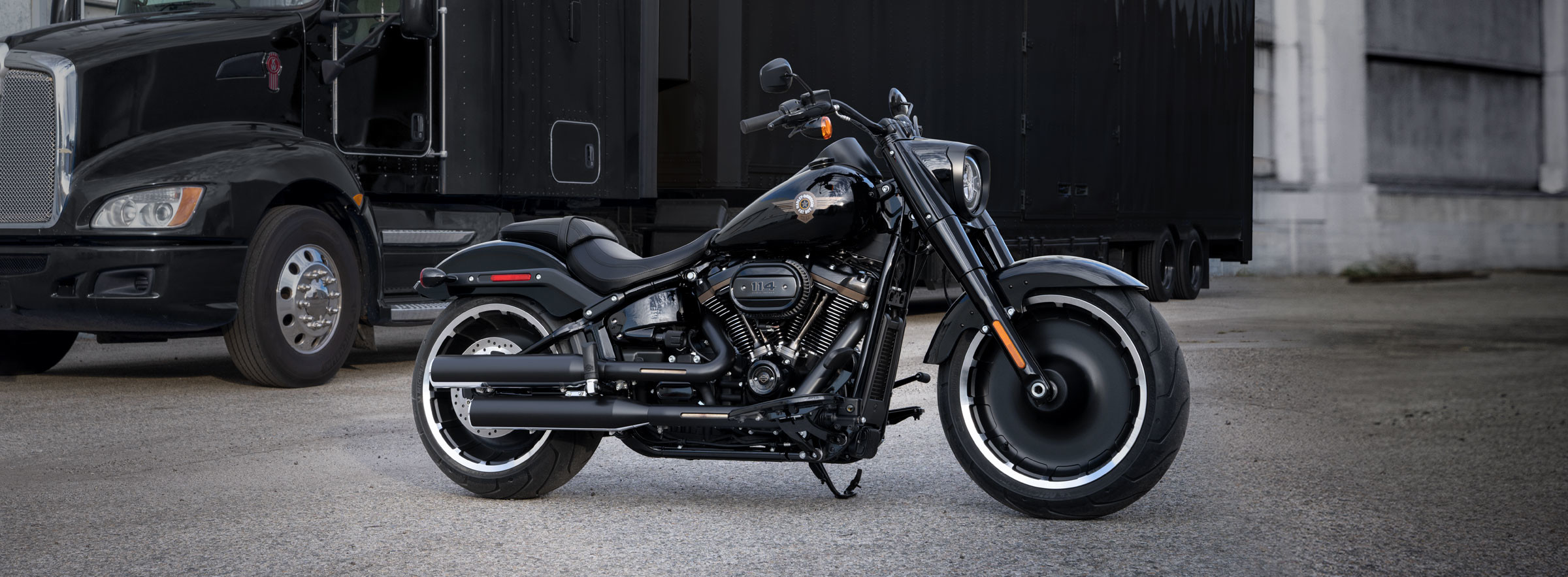

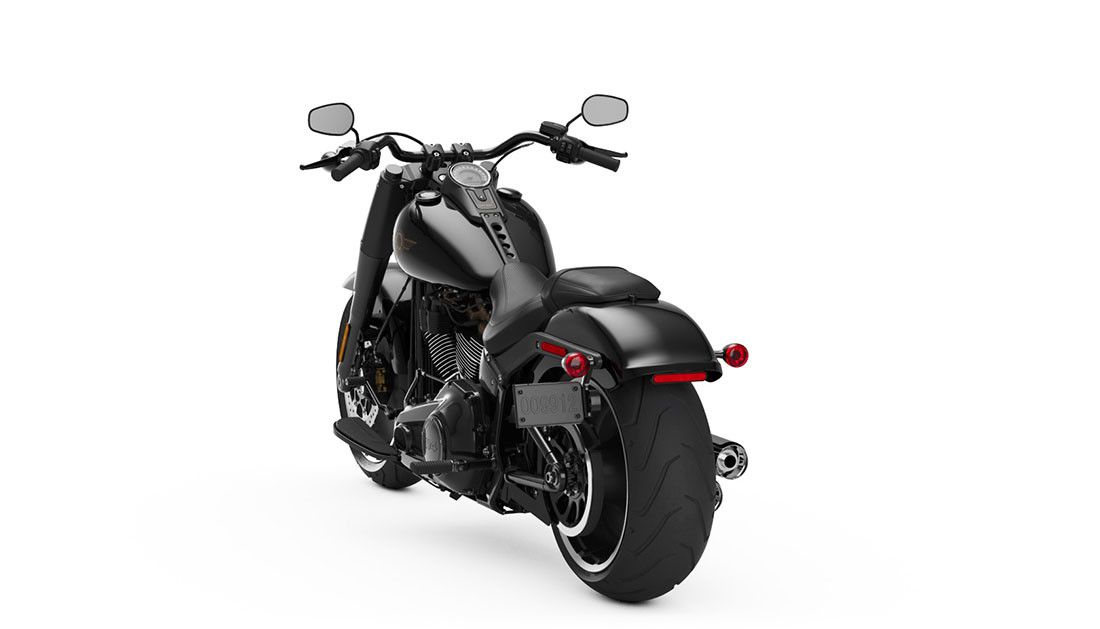

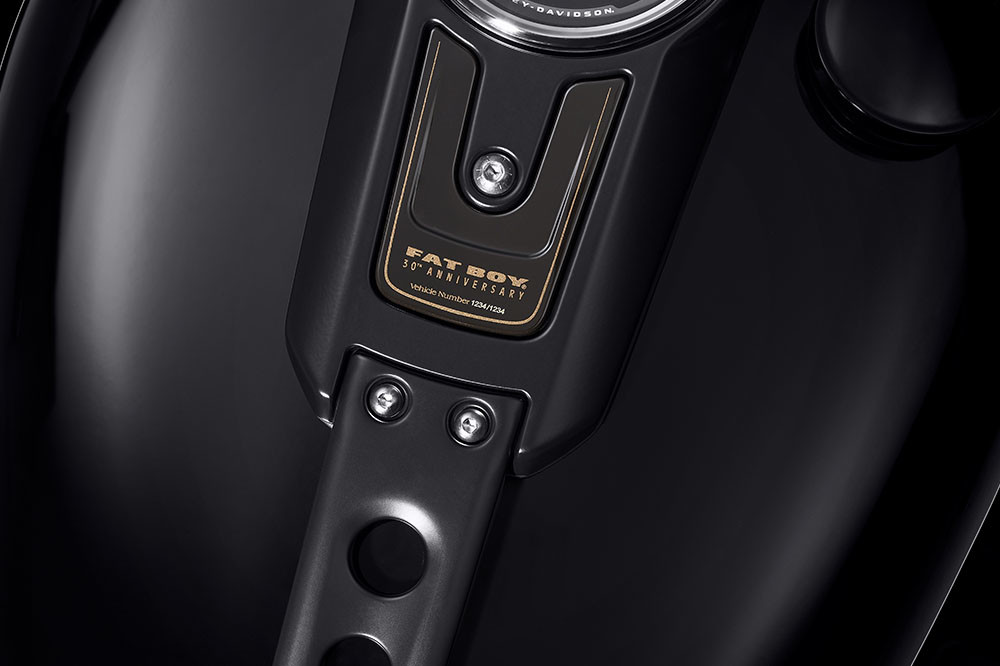

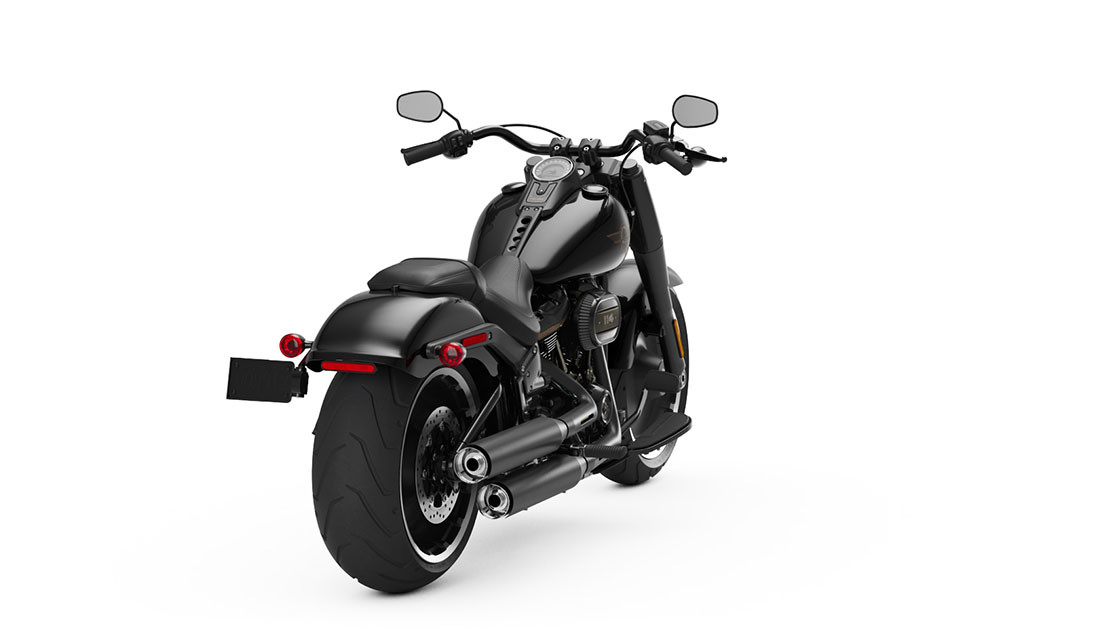

Harley-Davidson celebrates an icon with the introduction of the Fat Boy® 30th Anniversary motorcycle. Cloaked in dark finishes with bronze highlights and powered by a blacked-out Milwaukee-Eight® 114 engine, production of the 30th Anniversary Fat Boy will be limited to 2,500 examples, each serialized with a number plate affixed to the fuel tank console. The Fat Boy 30th Anniversary motorcycle celebrates the three-decade impact of the original model with a bold reinterpretation executed in dark finishes paired with a single color option, Vivid Black. The cast-aluminium Lakester wheels are finished in Satin Black with machined highlights. The blacked-out Milwaukee-Eight 114 powertrain is finished with engine covers in gloss black and subtle bronze-tone lower rocker covers and timer cover script. A new bronze-tone waterslide Fat Boy tank logo complements the black finish and other bronze details that set the Fat Boy 30th Anniversary apart from the regular-production model.

Disclaimer

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

Specifications

Length 93.3in
Fuel Capacity 5.0gal
Ground clearance 4.5in
Seat Height 25.9in
Rake (steering head) (deg) 30
Trail 4.1in
Wheelbase 65.6in
Tires, front specifications 160/60R18,70V,BW
Tires, rear specifications 240/40R18,79V,BW
Oil capacity 5qt. / 1.2gal
Weight, as shipped 670lbs
Weight, in running order 671lb / 670lbs
Engine Milwaukee-Eight® 114
Bore 4.0in
Stroke 4.5in
Displacement 113.99in3
Compression ratio 10.5:1
Fuel system Electronic Sequential Port Fuel Injection (ESPFI)

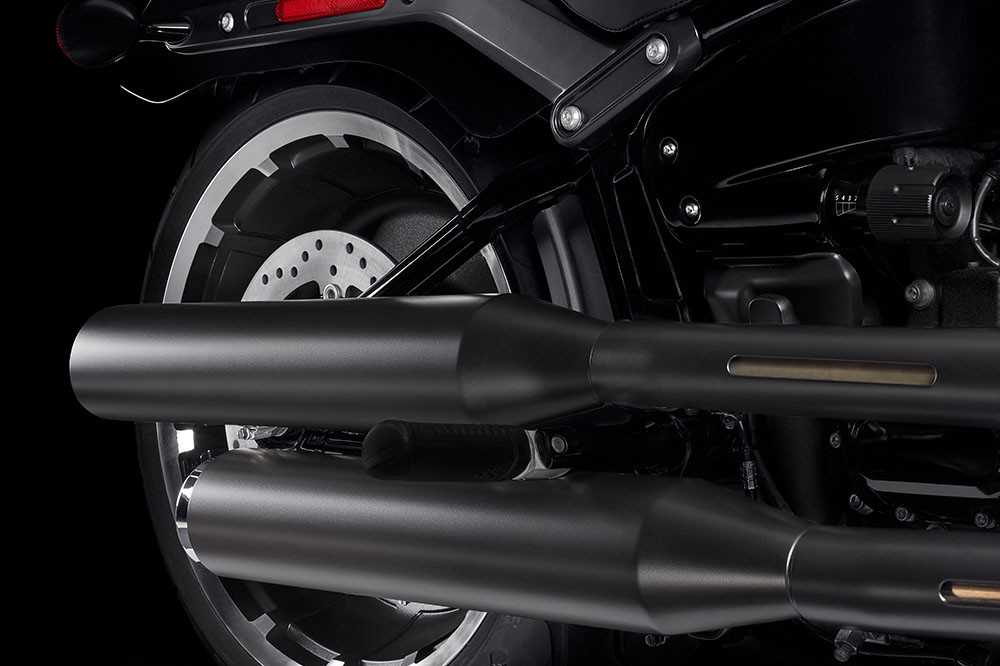

Exhaust 2-into-2 staggered; catalyst in muffler
Primary drive (*Cert) Chain, 34/46 ratio
Engine torque 114.3ft-lb
Gear Ratios (overall) 1st (*Cert) 9.311
Gear Ratios (overall) 2nd (*Cert) 6.454
Gear Ratios (overall) 3rd (*Cert) 4.793
Gear Ratios (overall) 4th (*Cert) 3.882
Gear Ratios (overall) 5th (*Cert) 3.307
Gear Ratios (overall) 6th (*Cert) 2.79
Front Scorcher™ "11"
Rear Scorcher™ "11"
Engine torque testing method J1349
Engine torque (*Cert) 118.7ft-lb
Lean angle, right (deg.) 25.6
Lean angle, left (deg.) 25.6
Fuel economy testing method Estimated City/Hwy
Fuel economy 5l/100 km / 47mpg
Wheels, front type Satin black, machine highlighted, Lakester cast aluminum
Wheels, rear type Satin black, machine highlighted, Lakester cast aluminum
Brakes, caliper type 4-piston fixed front and 2-piston floating rear
Lights (as per country regulation), Indicator Lamps High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
Gauges 5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
Vivid Black
