Fat Bob<sup>®</sup> 114
Fat Bob<sup>®</sup> 114

Fat Bob® 114

Book test ride Request details Value My Trade

Description

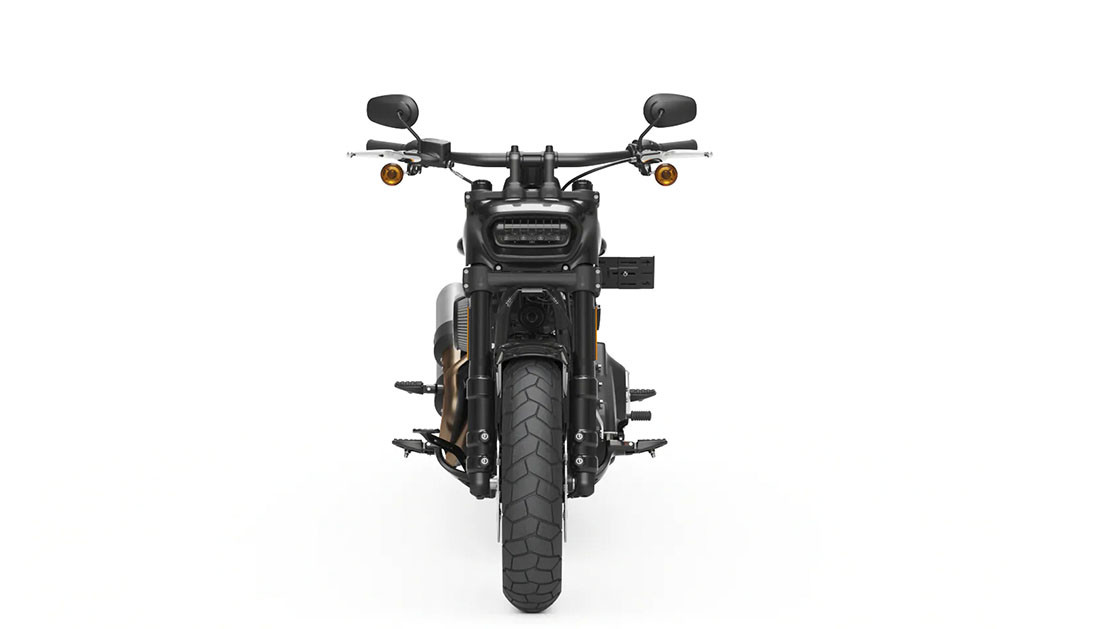

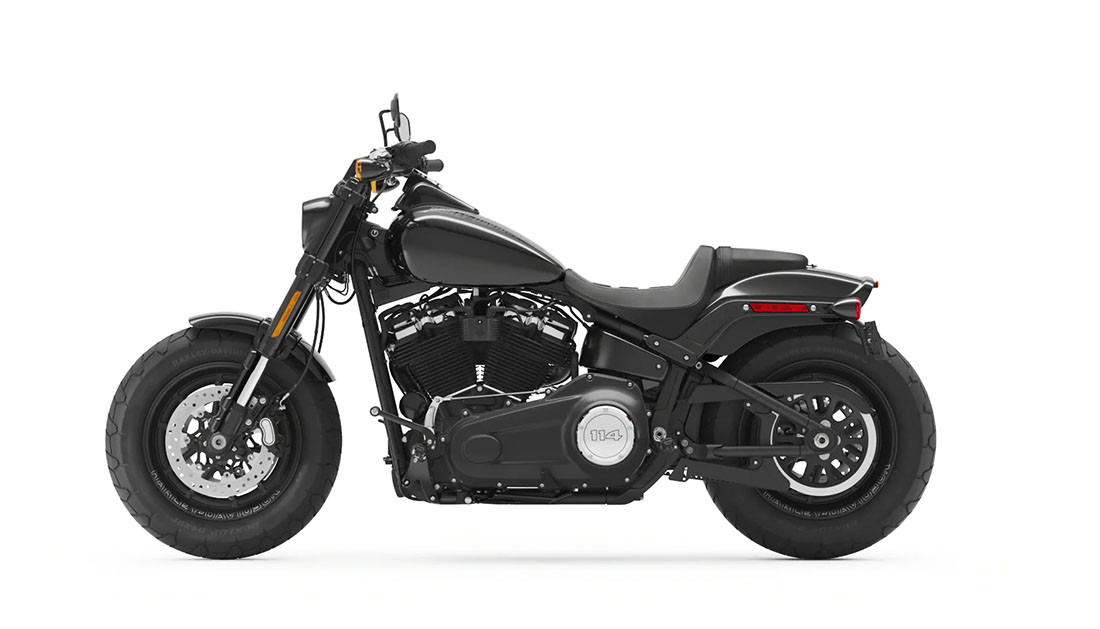

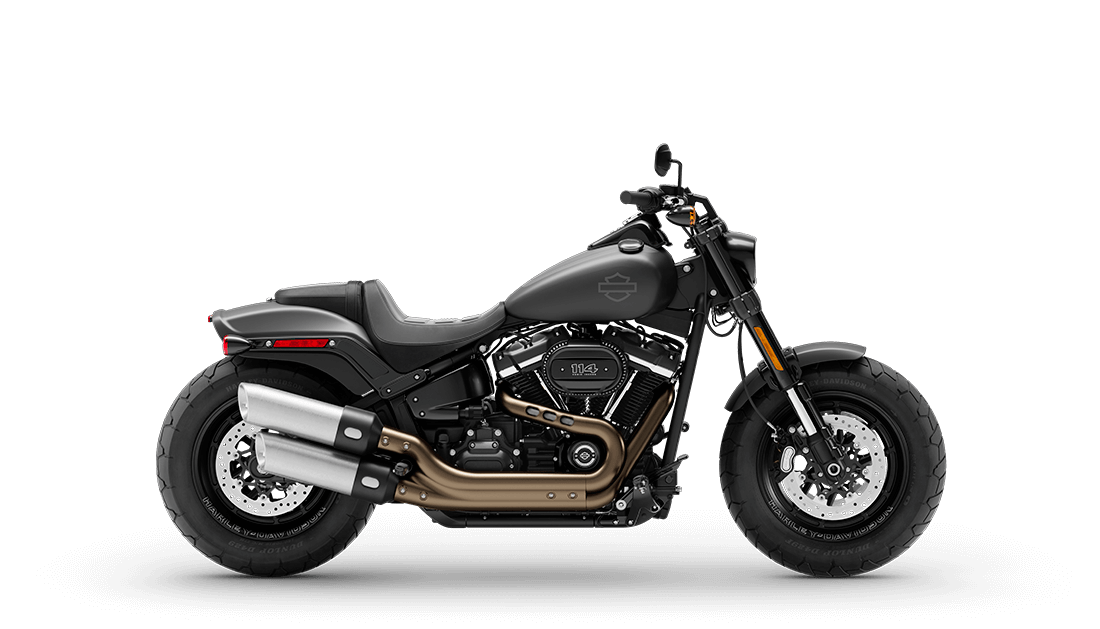

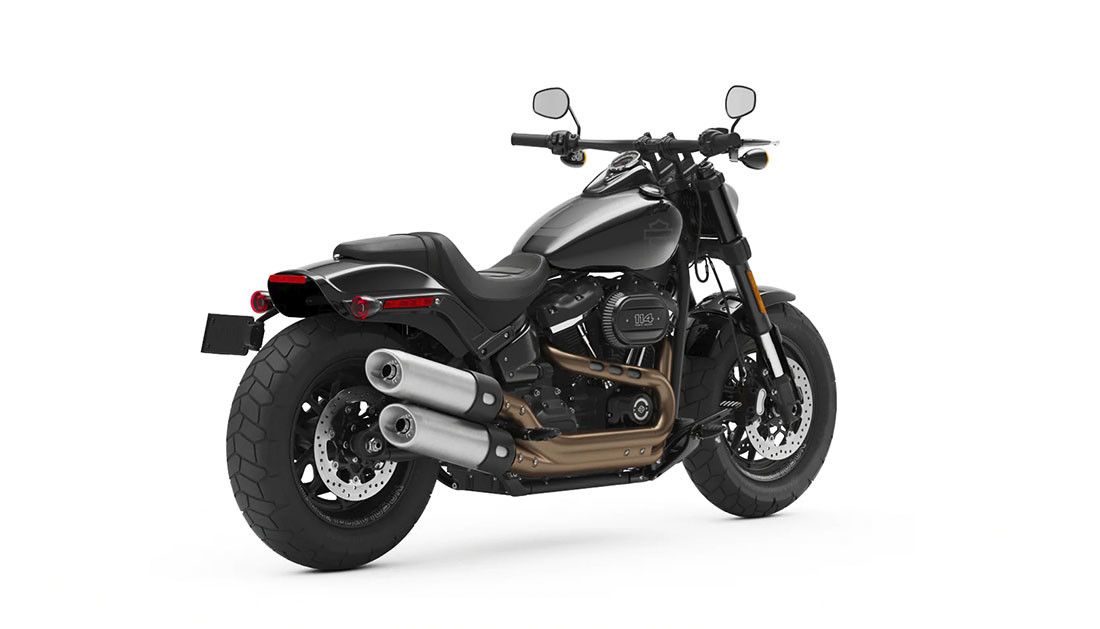

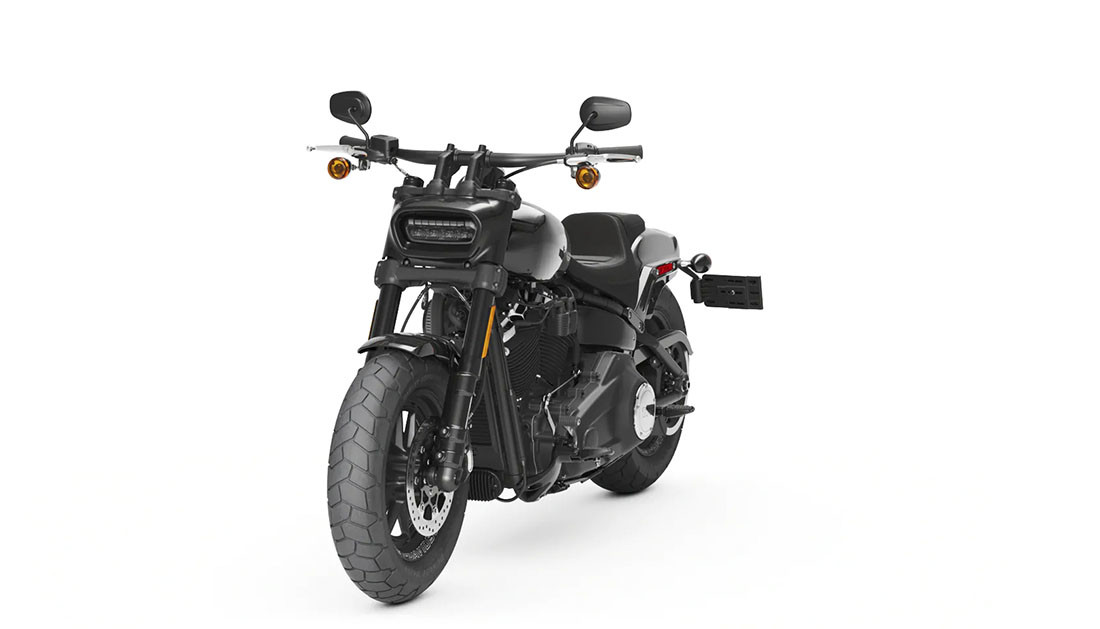

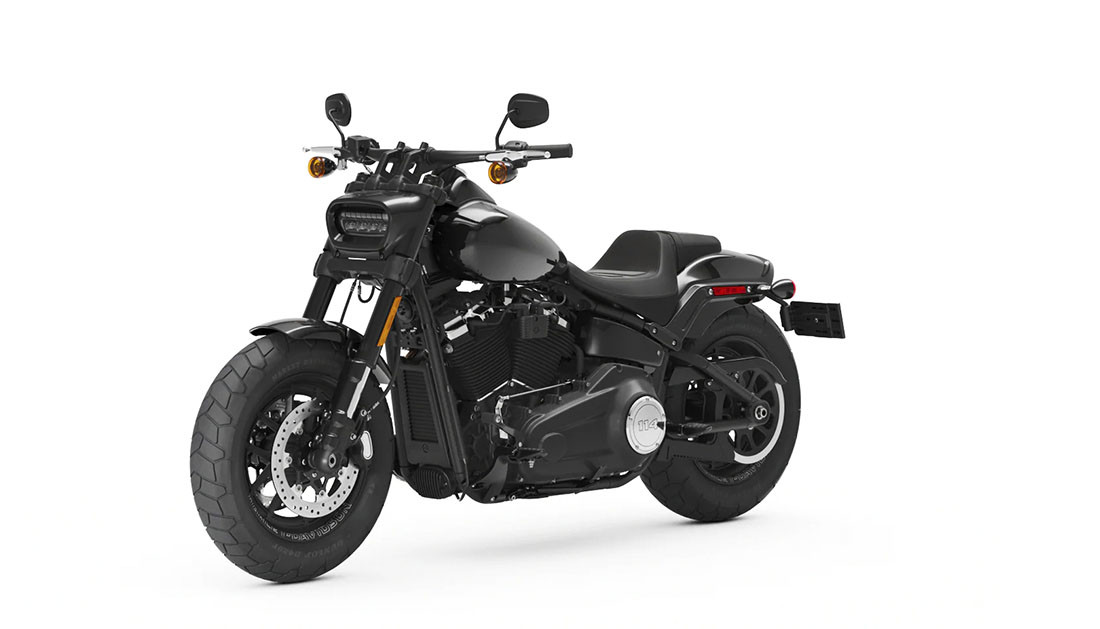

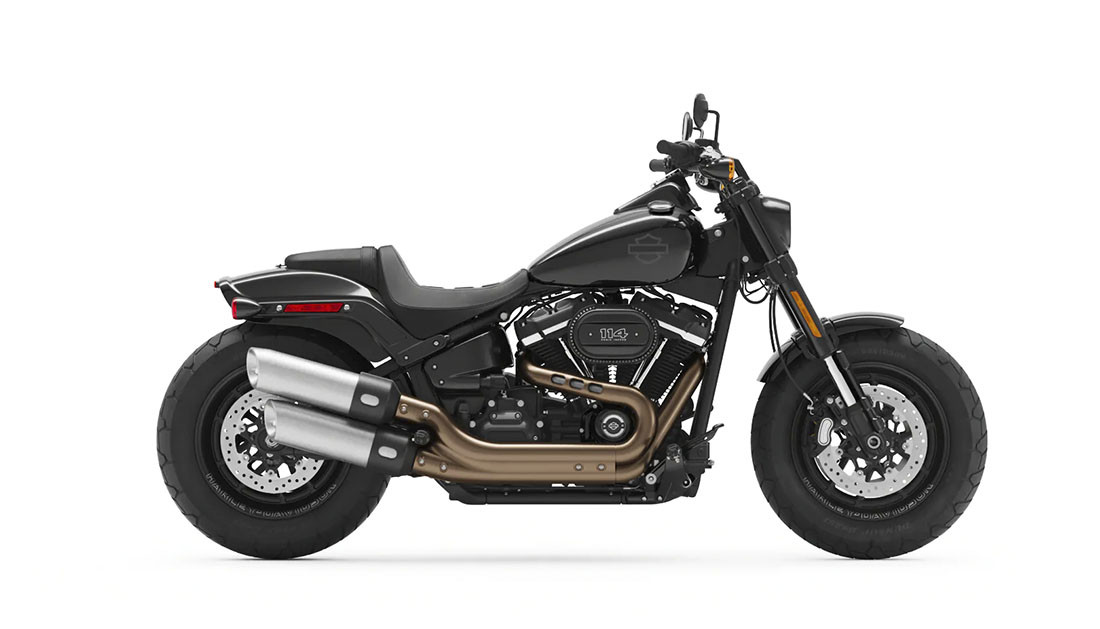

The Fat Bob® is all Harley-Davidson, but at the same time, it’s unlike any Harley® motorcycle that ever existed before. From the modern, aggressive look of its 2-1-2 upswept exhaust and tarmac-devouring fat tyres to the massive torque of the Milwaukee-Eight® engine to the ride of the Softail® frame, inverted front forks and easily adjustable rear suspension, it’s built to shake up the status quo. This is for the rider that wants to break new ground at a high rate of speed.

Available in 107 (1745cc) and 114 (1868cc) engine displacements.

Disclaimer

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

Specifications

Length 92.1in
Fuel Capacity 3.6gal
Ground clearance 4.7in
Seat Height 27.7in
Rake (steering head) (deg) 28
Trail 5.2in
Wheelbase 1,615mm
Tires, front specifications 150/80-16,71H,BW
Tires, rear specifications 180/70B16,77H,BW
Oil capacity 5qt.
Weight, as shipped 653lbs
Weight, in running order 676lb
Engine Milwaukee-Eight® 114
Bore 4.0in
Stroke 4.5in
Displacement 113.99in3
Compression ratio 10.5:1
Fuel system Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust 2-into-2 shorty dual; catalyst in muffler
Primary drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.311
Gear Ratios (overall) 2nd 6.454
Gear Ratios (overall) 3rd 4.793
Gear Ratios (overall) 4th 3.882
Gear Ratios (overall) 5th 3.307
Gear Ratios (overall) 6th 2.79
Engine torque testing method J1349
Engine torque 118.0ft-lb
Lean angle, right (deg.) 31
Lean angle, left (deg.) 32
Fuel economy testing method Estimated City/Hwy
Fuel economy 5l/100 km / 47mpg
Wheels, front type Denim black, Structure cast aluminum with laser etched graphics
Wheels, rear type Denim black, Structure cast aluminum with laser etched graphics
Brakes, caliper type 4-piston fixed front and 2-piston floating rear
Lights (as per country regulation), Indicator Lamps High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
Gauges 4-inch analog tachometer with digital speedometer, gear, odometer, fuel level, clock, trip and range indication
Black Denim
Vivid Black
River Rock Gray Denim
Performance Orange
Stiletto Red
Barracuda Silver Denim
