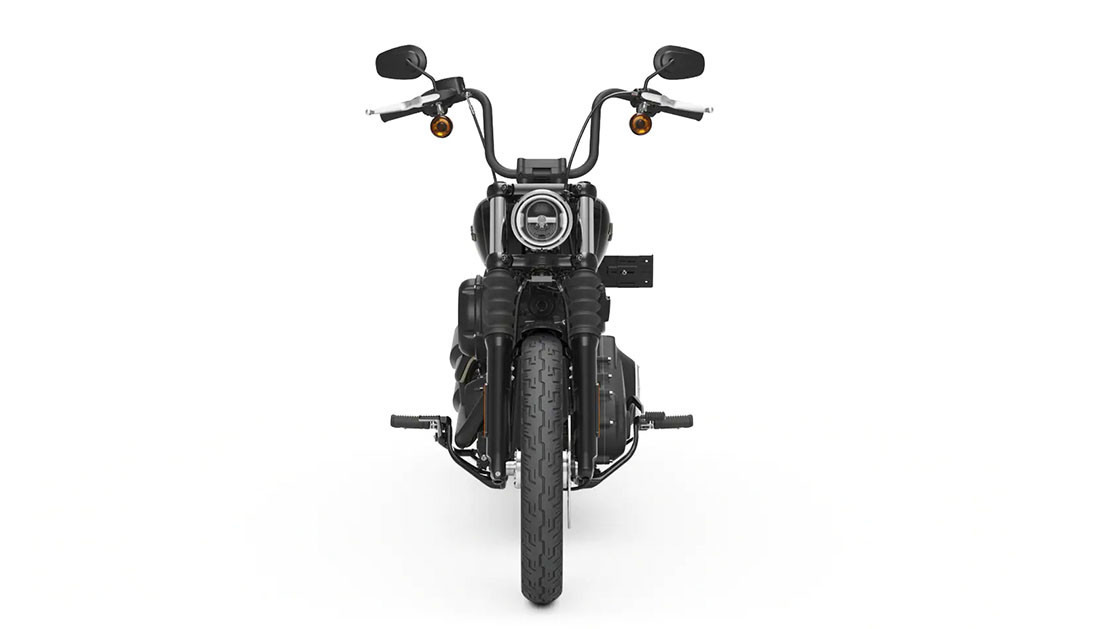

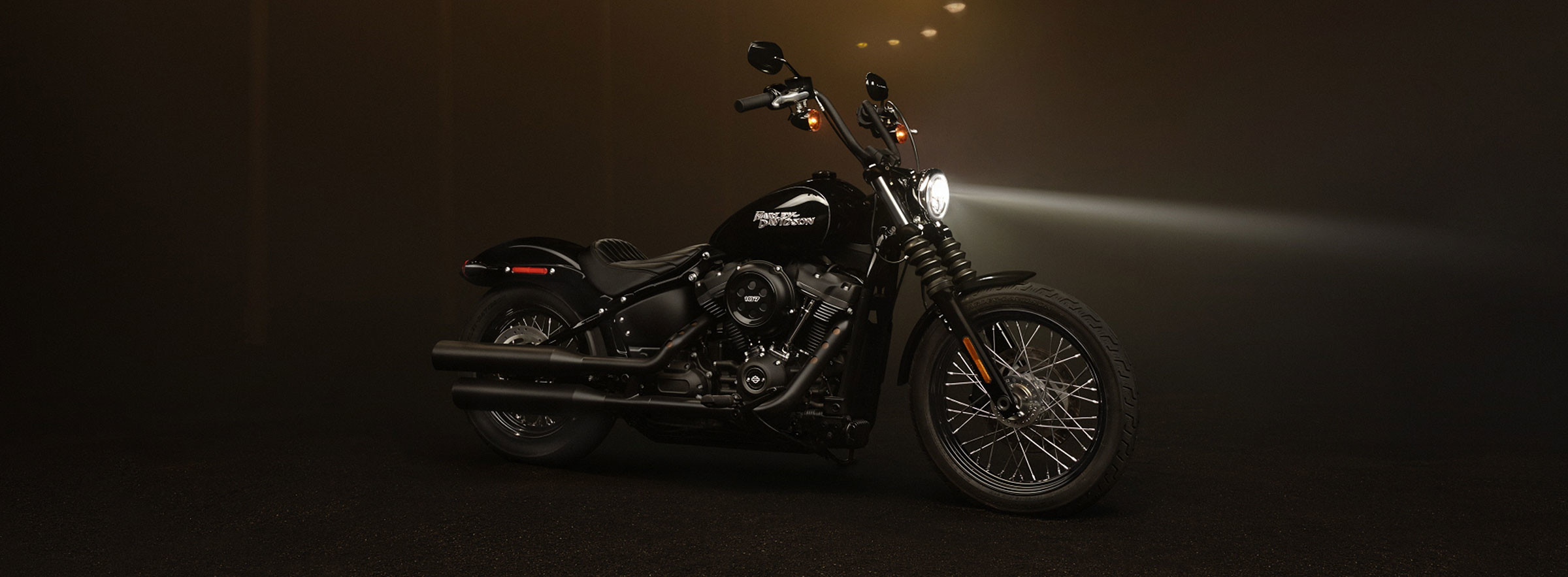

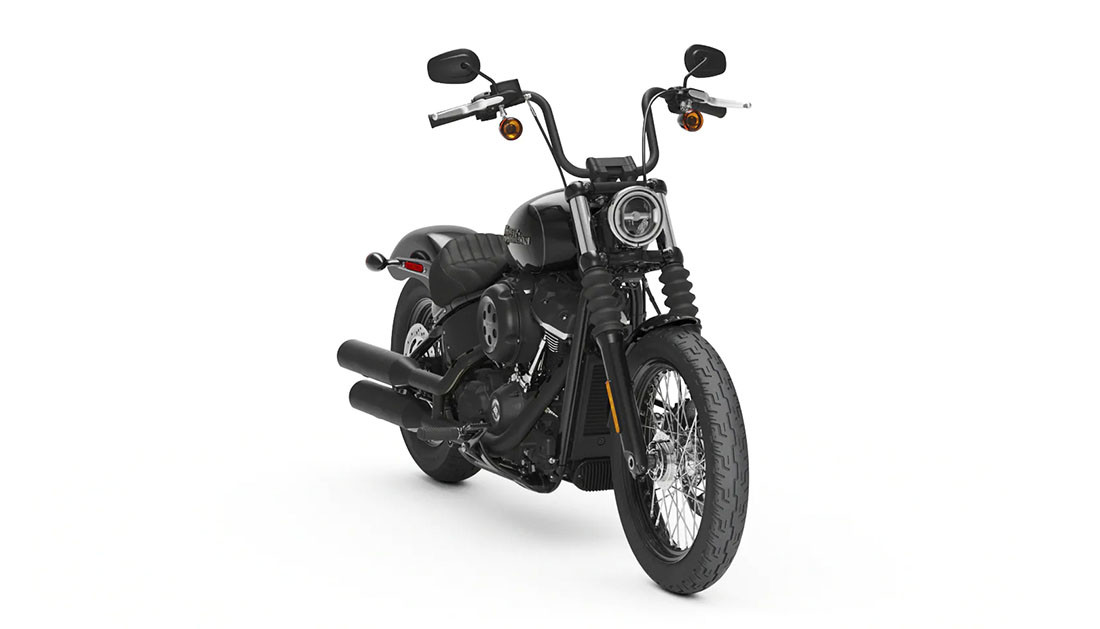

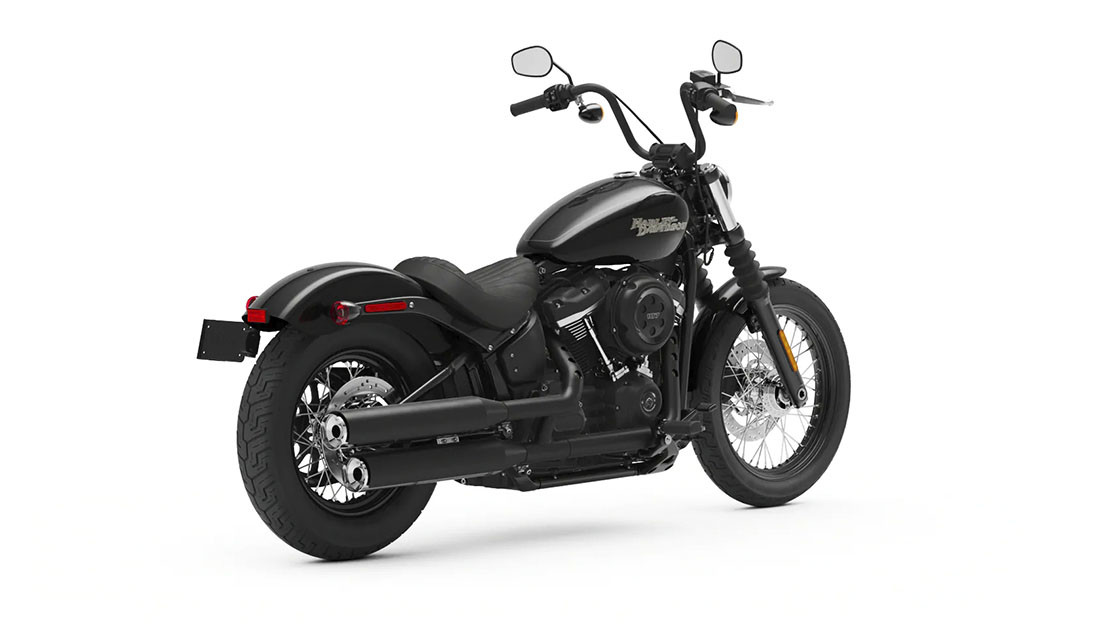

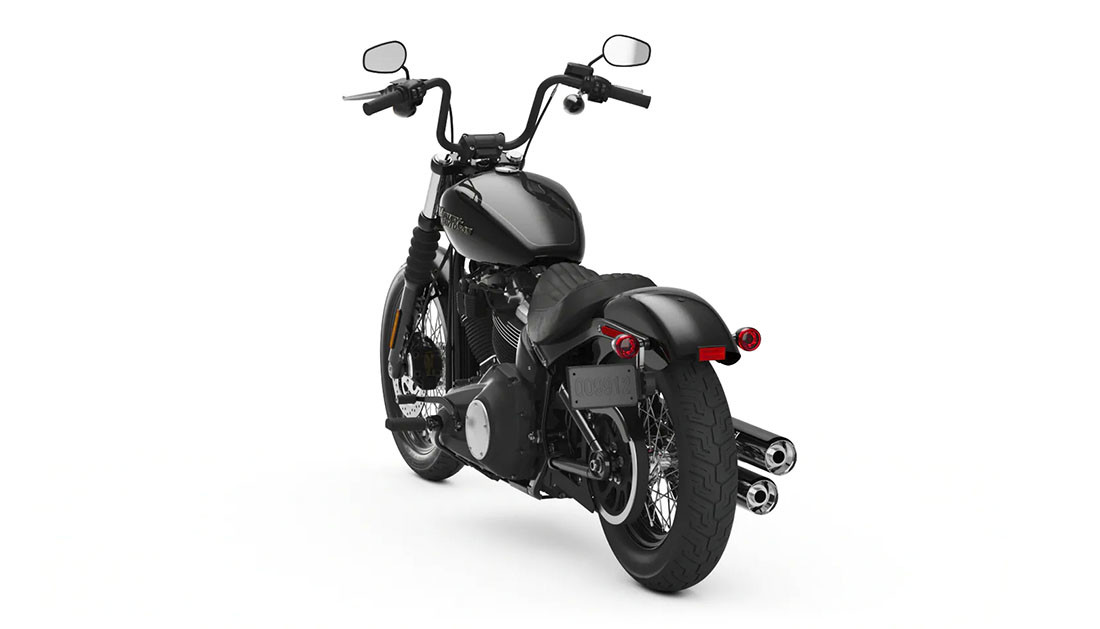

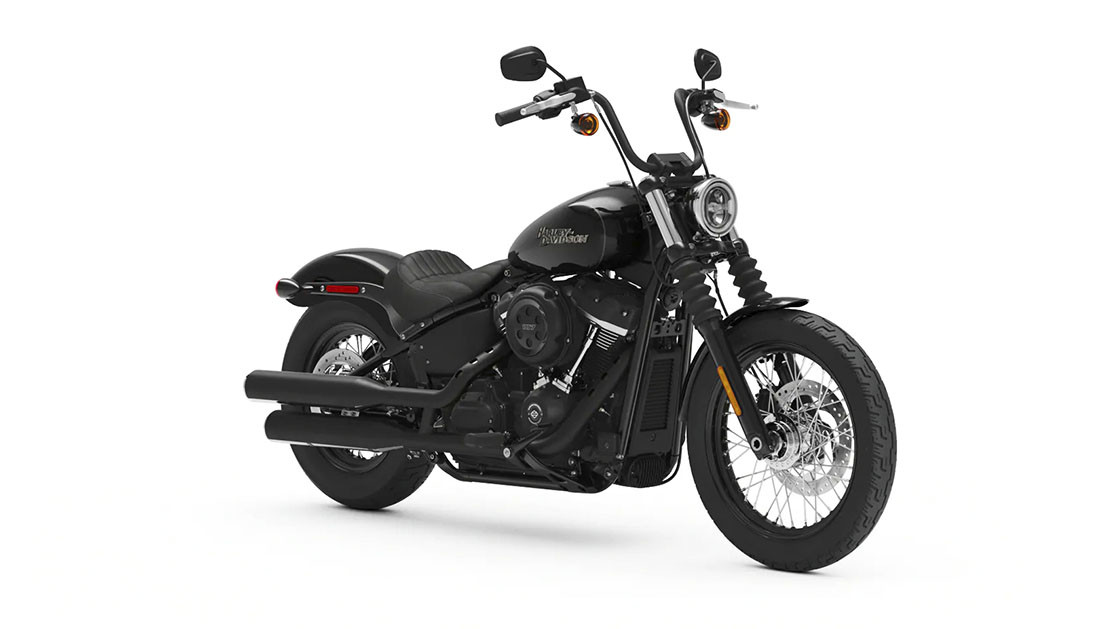

Street Bob<sup>®</sup>
Street Bob<sup>®</sup>

Street Bob®

Description

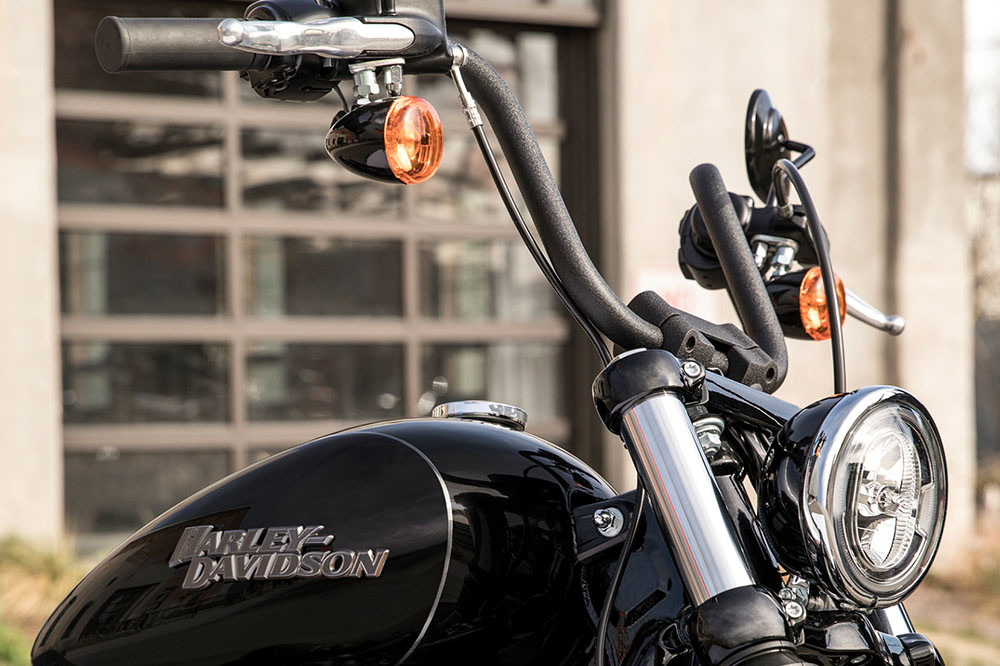

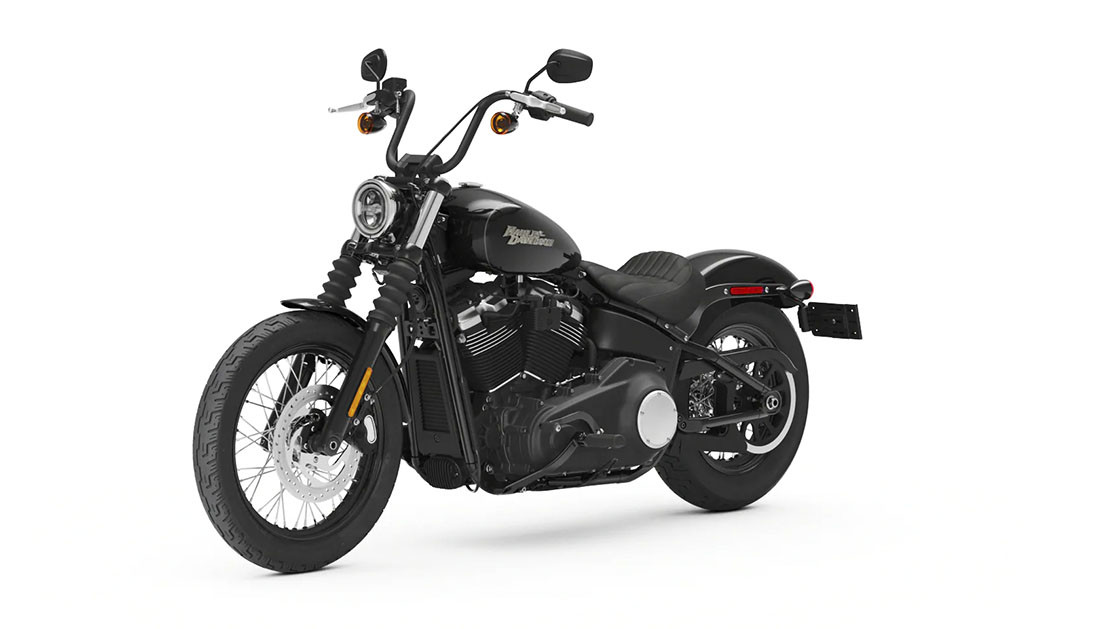

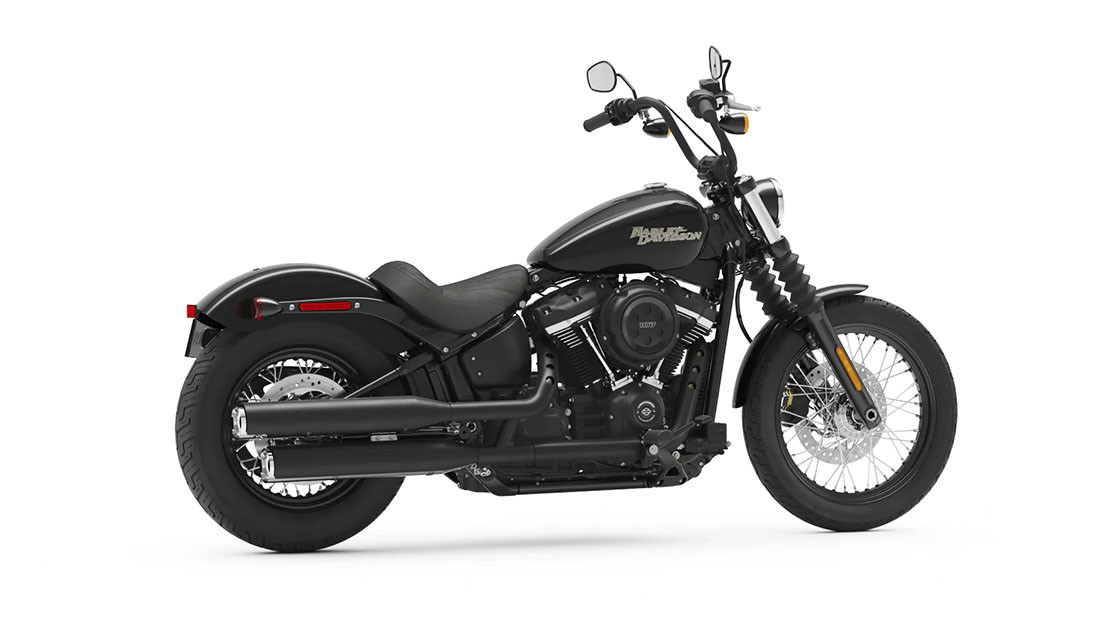

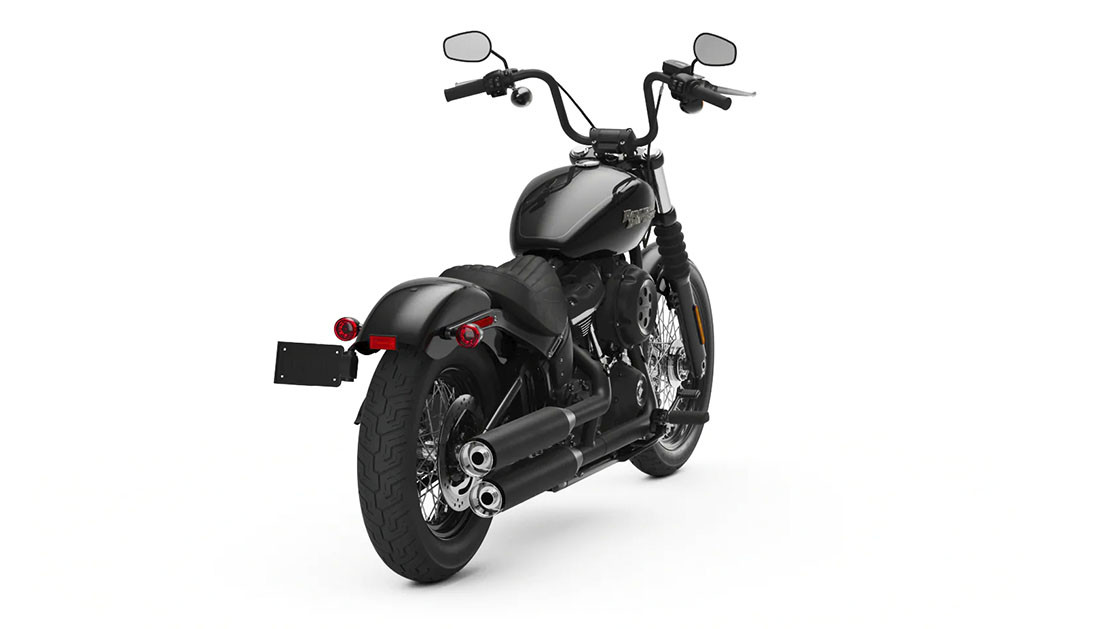

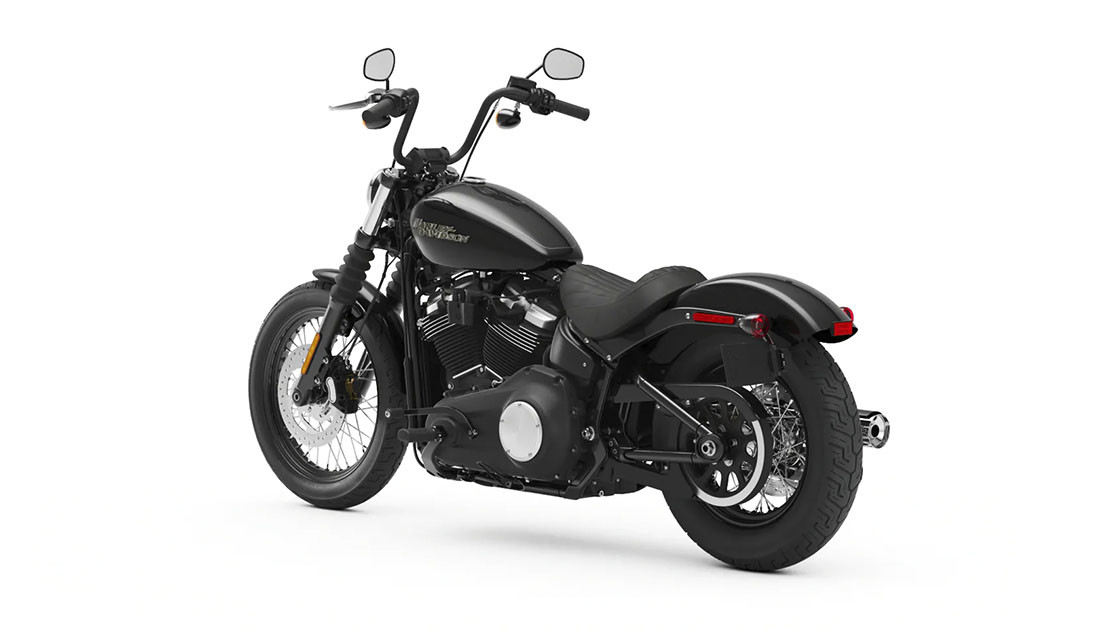

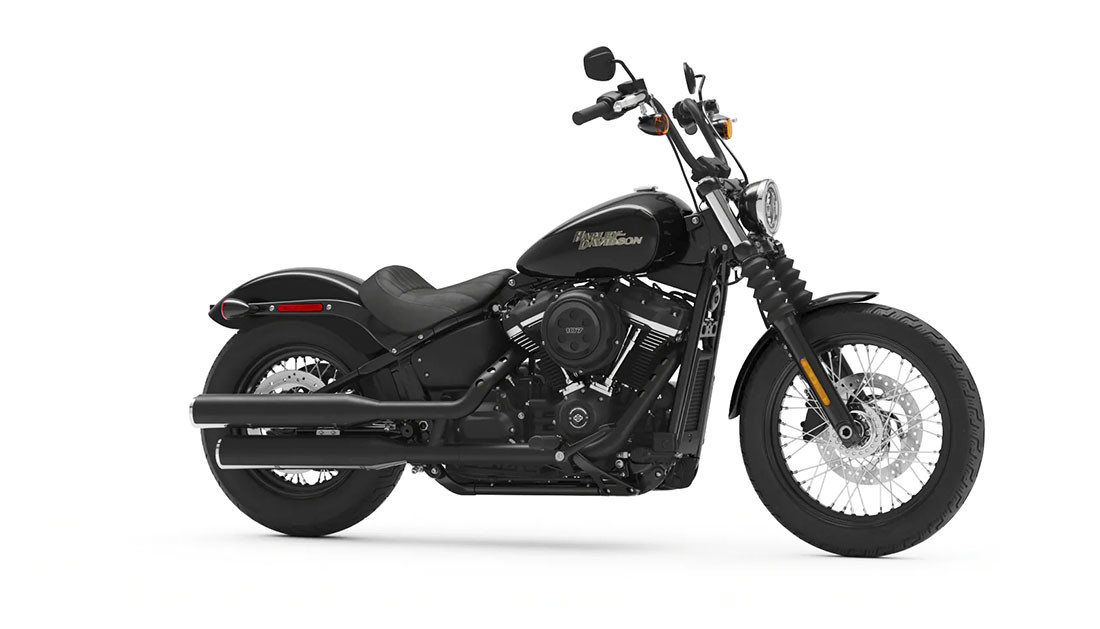

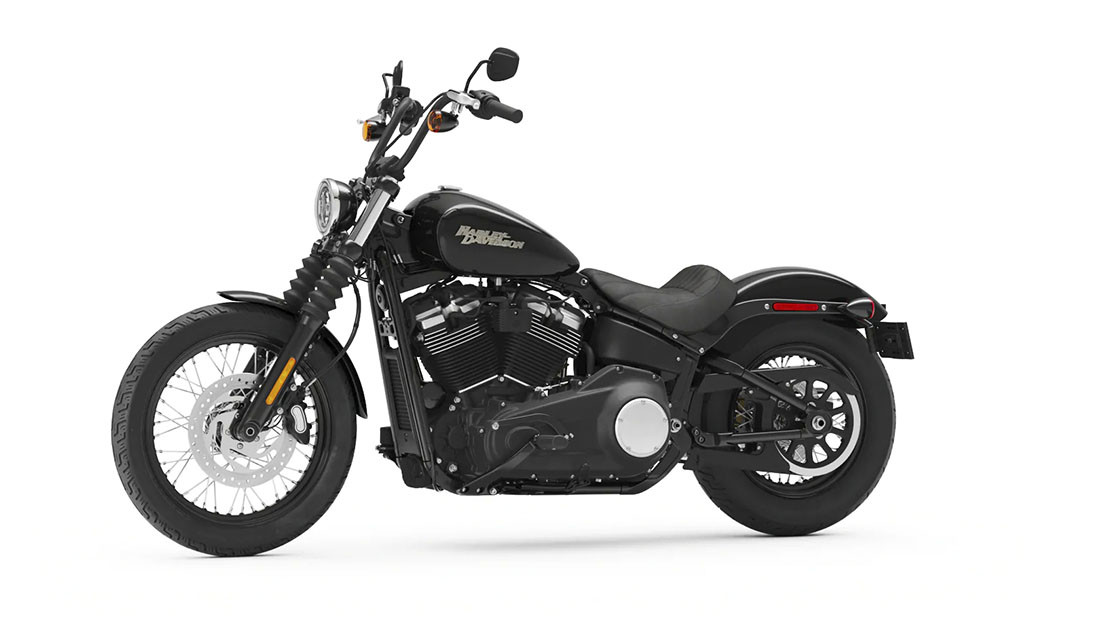

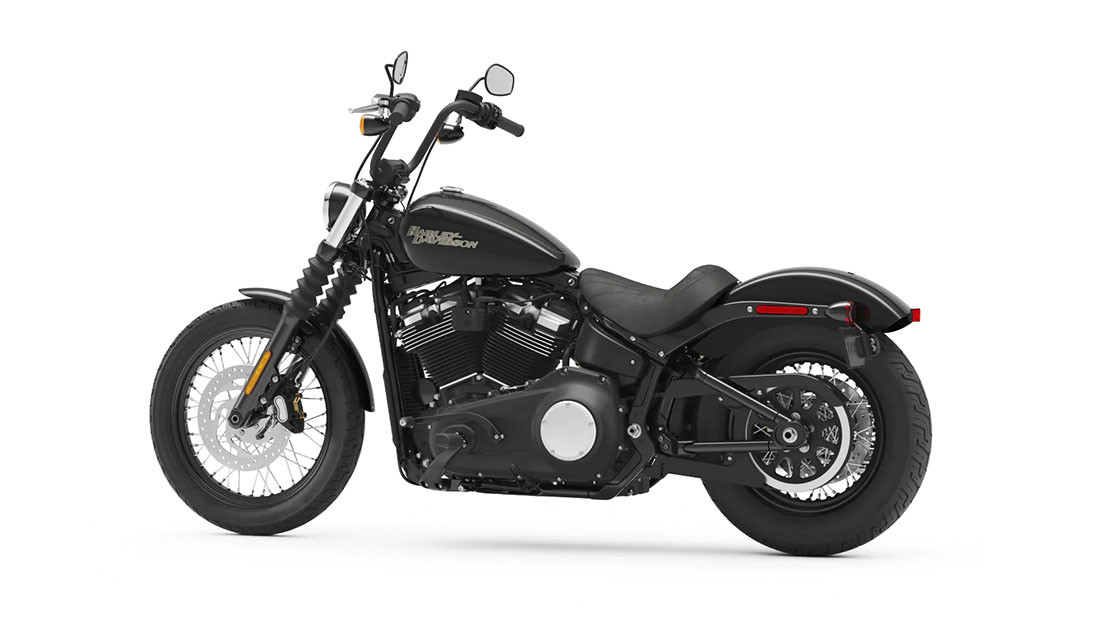

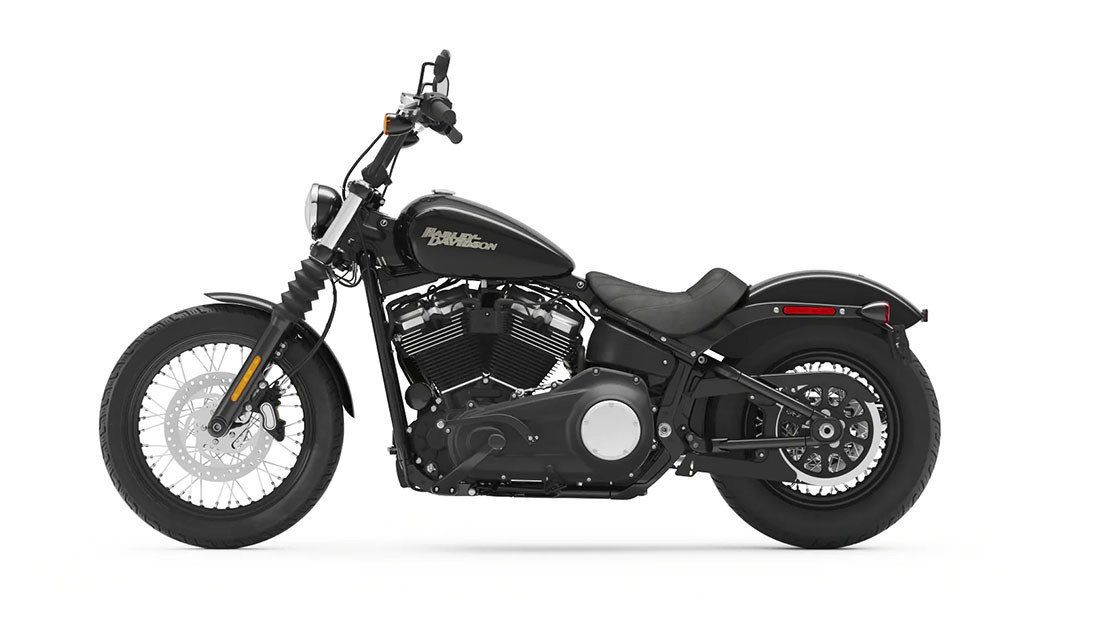

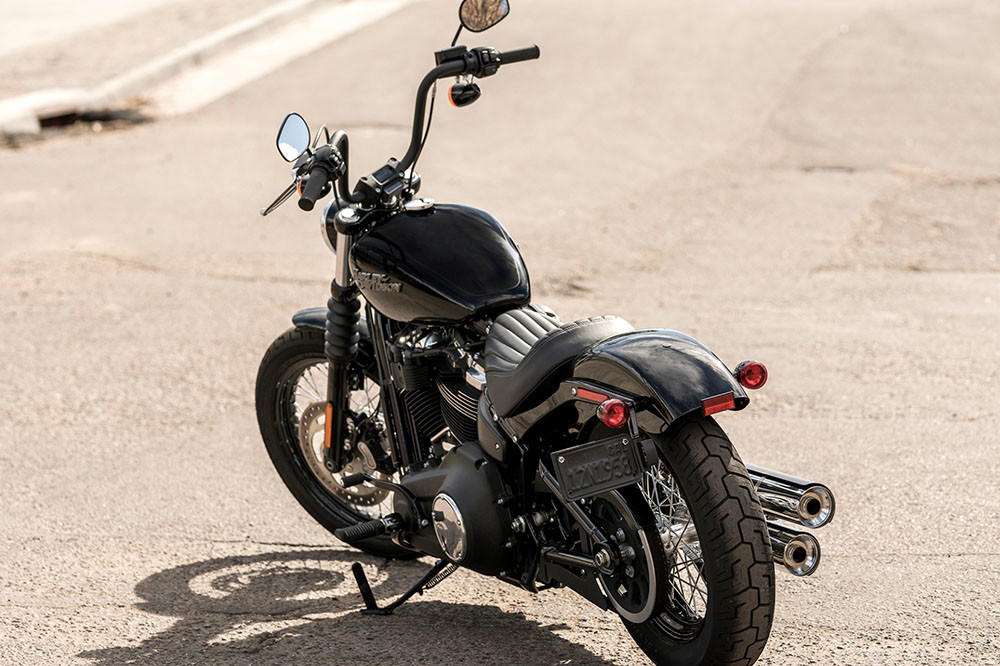

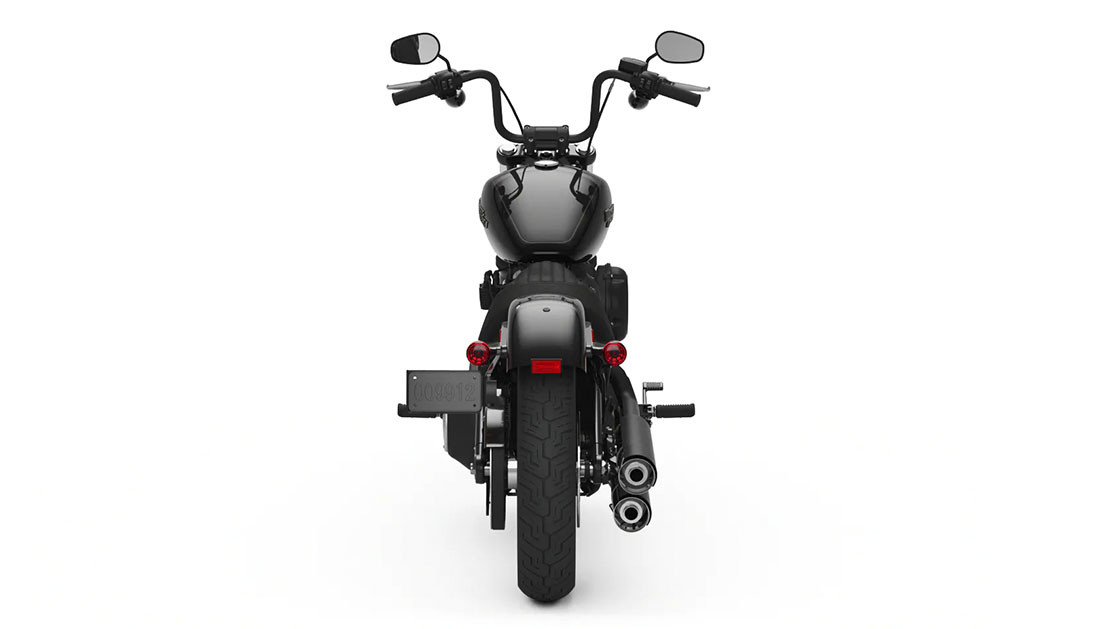

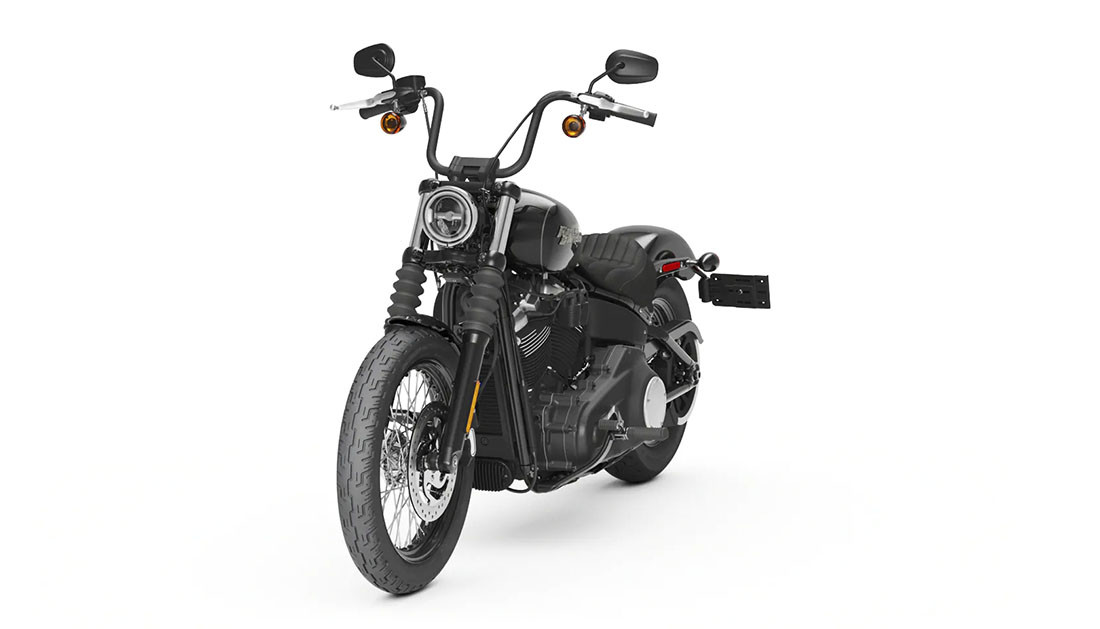

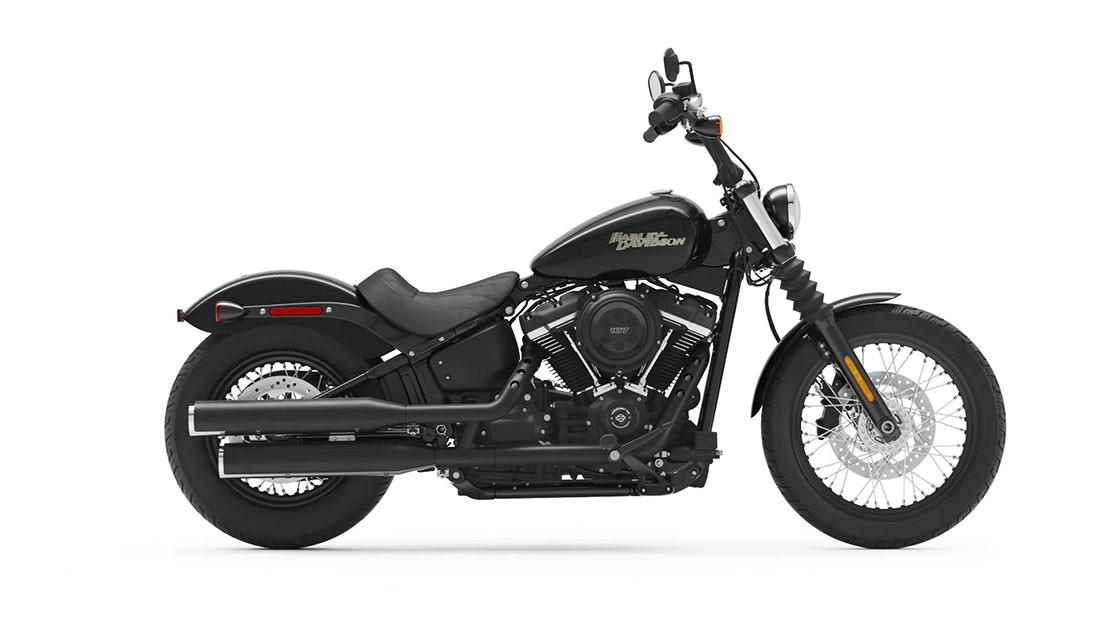

The Street Bob® model gives you the two-fists-in-the wind riding experience stripped down to the bare essence. Blacked out surfaces, spoked wheels, hidden digital instrumentation, mid controls, and chopped mudguards. The 107-cubic inch (1745cc) Milwaukee-Eight® engine gives you all the power you need to put the world in your mirrors in a hurry. It’s all you need, and nothing you don’t. And it comes at a price that put the black mini apes easily within reach.

Disclaimer

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

Specifications

Length 91.3in
Fuel Capacity 3.5gal
Ground clearance 4.9in
Seat Height 25.8in
Rake (steering head) (deg) 30
Trail 6.2in
Wheelbase 1,630mm
Tires, front specifications 100/90B19,57H,BW
Tires, rear specifications 150/80B16,77H,BW
Oil capacity 5qt.
Weight, as shipped 631lbs
Weight, in running order 655lb

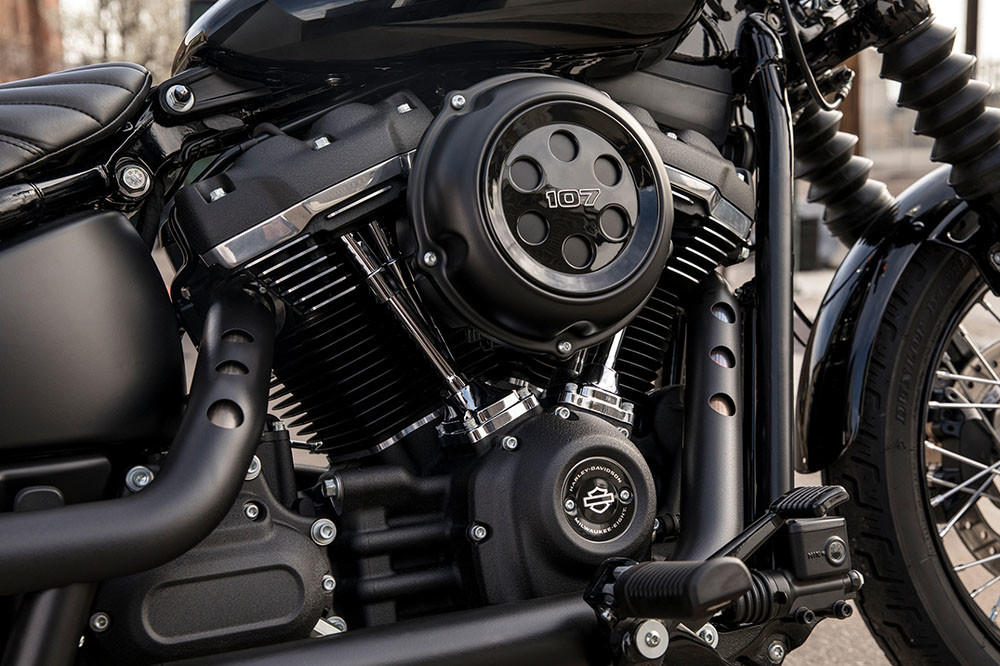

Engine Milwaukee-Eight® 107
Bore 3.9in
Stroke 4.4in
Displacement 106.55in3
Compression ratio 10.0:1
Fuel system Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust 2-into-2 offset shotgun; catalyst in muffler
Primary drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.311
Gear Ratios (overall) 2nd 6.454
Gear Ratios (overall) 3rd 4.793
Gear Ratios (overall) 4th 3.882
Gear Ratios (overall) 5th 3.307
Gear Ratios (overall) 6th 2.79
Engine torque testing method J1349
Engine torque 109.9ft-lb
Lean angle, right (deg.) 28.5
Lean angle, left (deg.) 28.5
Fuel economy testing method Estimated City/Hwy
Fuel economy 5l/100 km / 47mpg
Wheels, front type Gloss Black, Steel Laced
Wheels, rear type Gloss Black, Steel Laced
Brakes, caliper type 4-piston fixed front and 2-piston floating rear
Lights (as per country regulation), Indicator Lamps High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS (if equipped), security, low battery voltage, low fuel

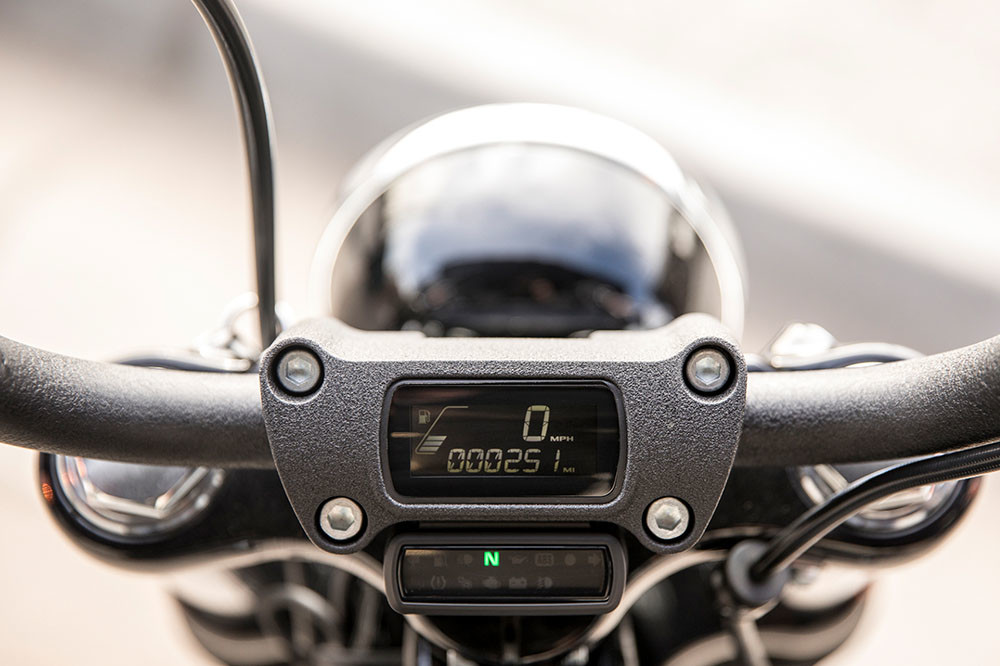

Gauges 2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
Vivid Black
River Rock Gray
Billiard Red/Vivid Black
Spruce
Barracuda Silver Denim
