Fat Boy<sup>®</sup> 114
Fat Boy<sup>®</sup> 114

Fat Boy® 114

Book test ride Request details Value My Trade

Description

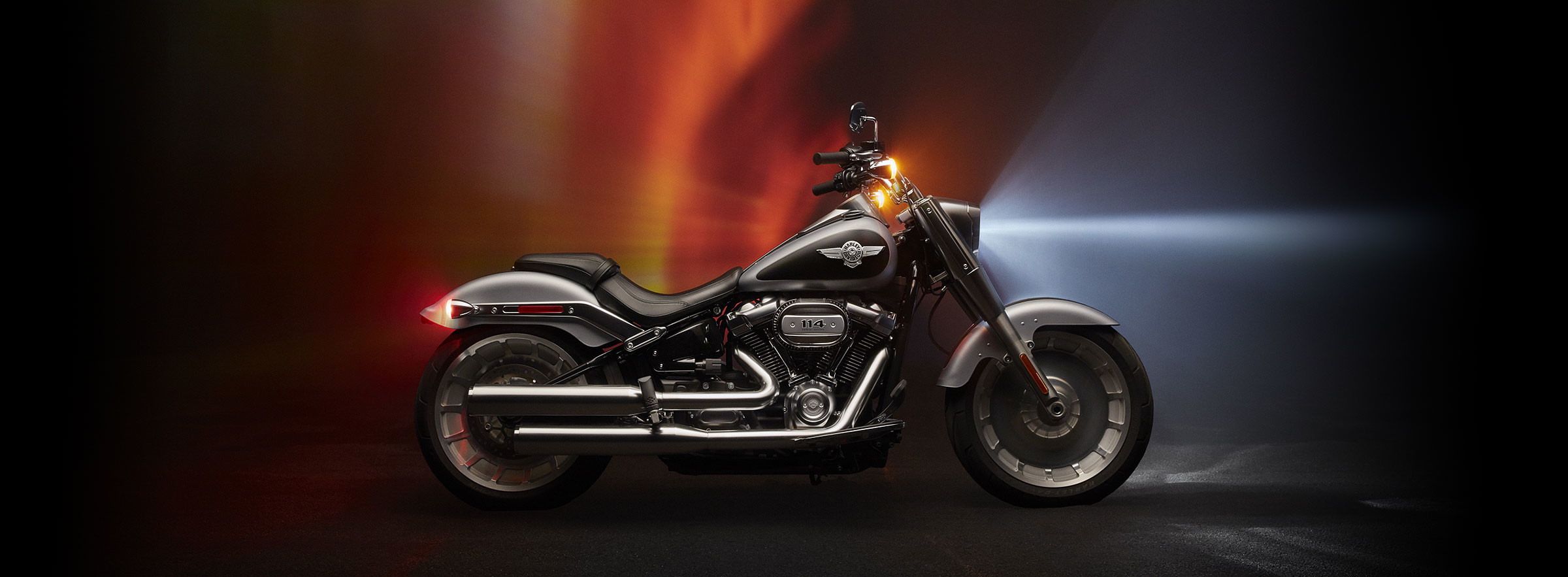

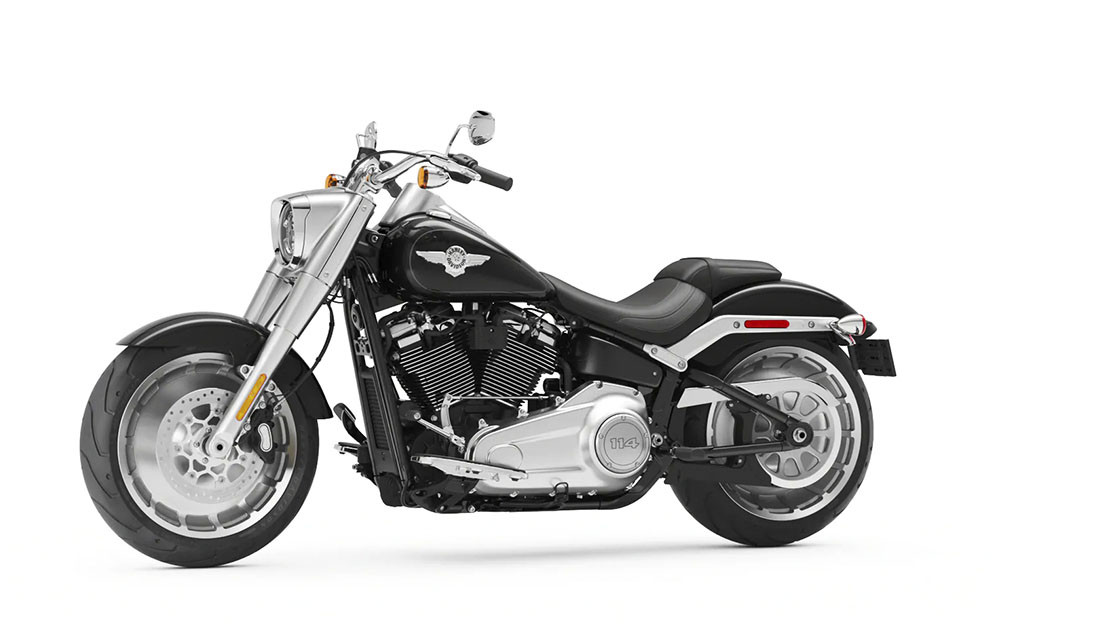

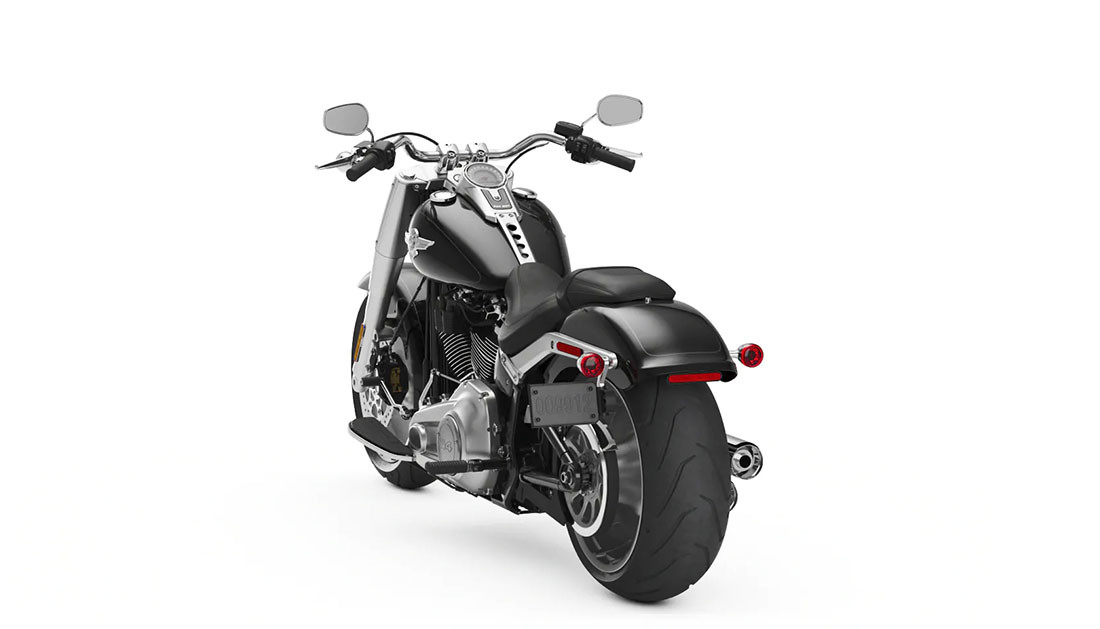

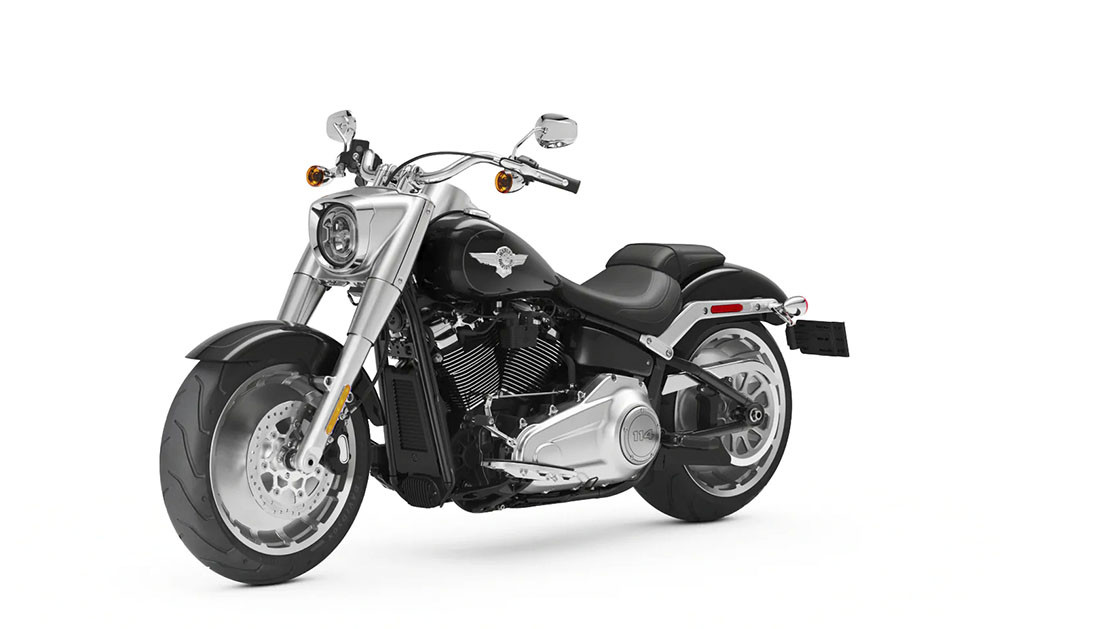

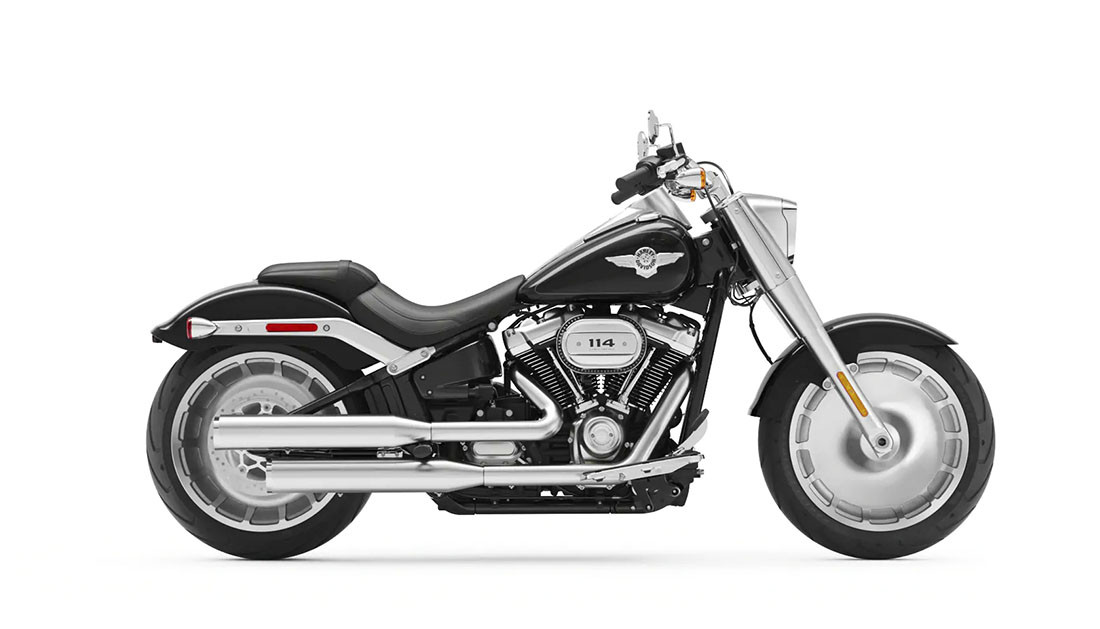

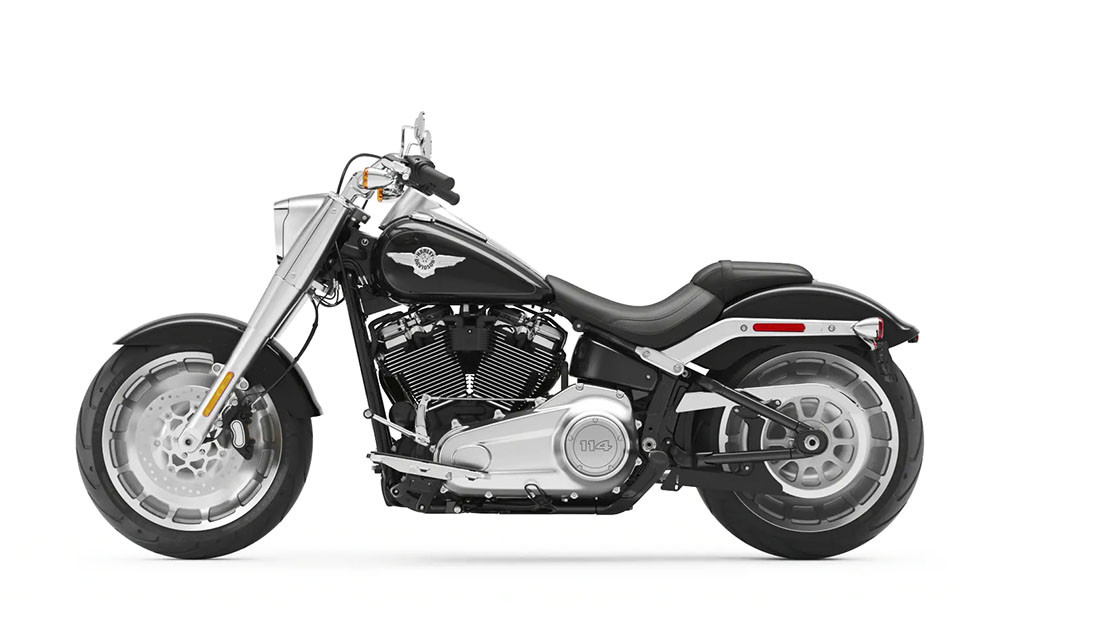

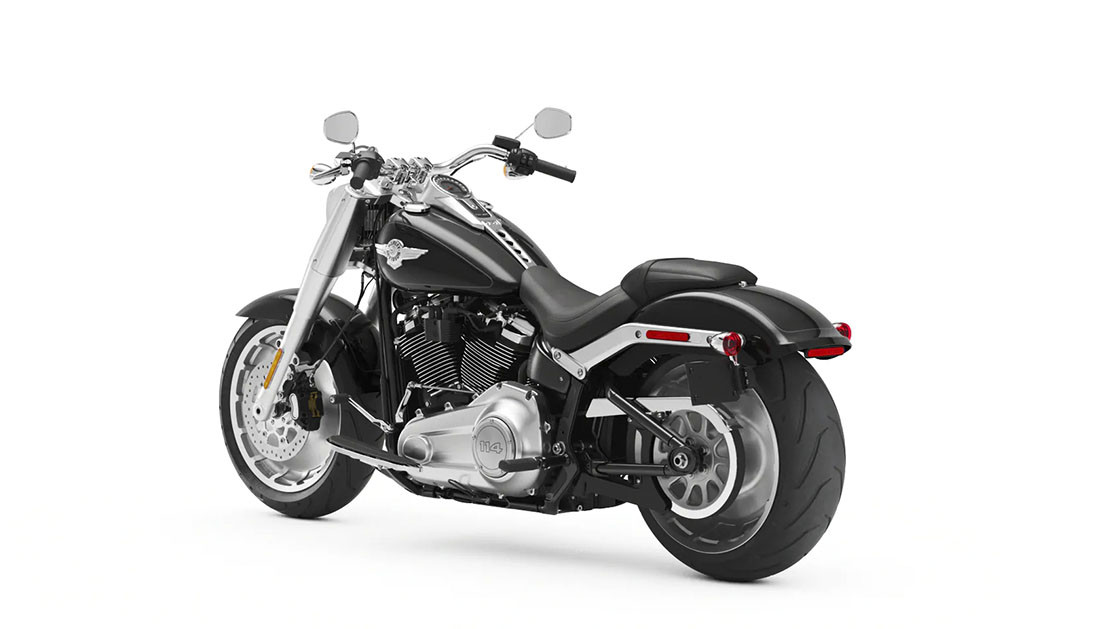

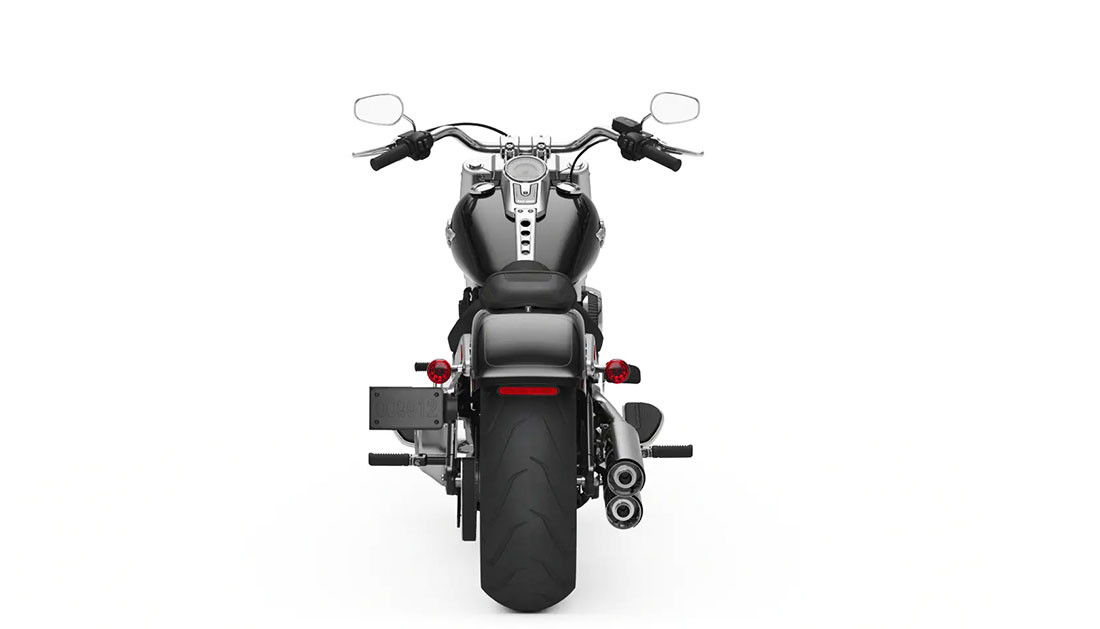

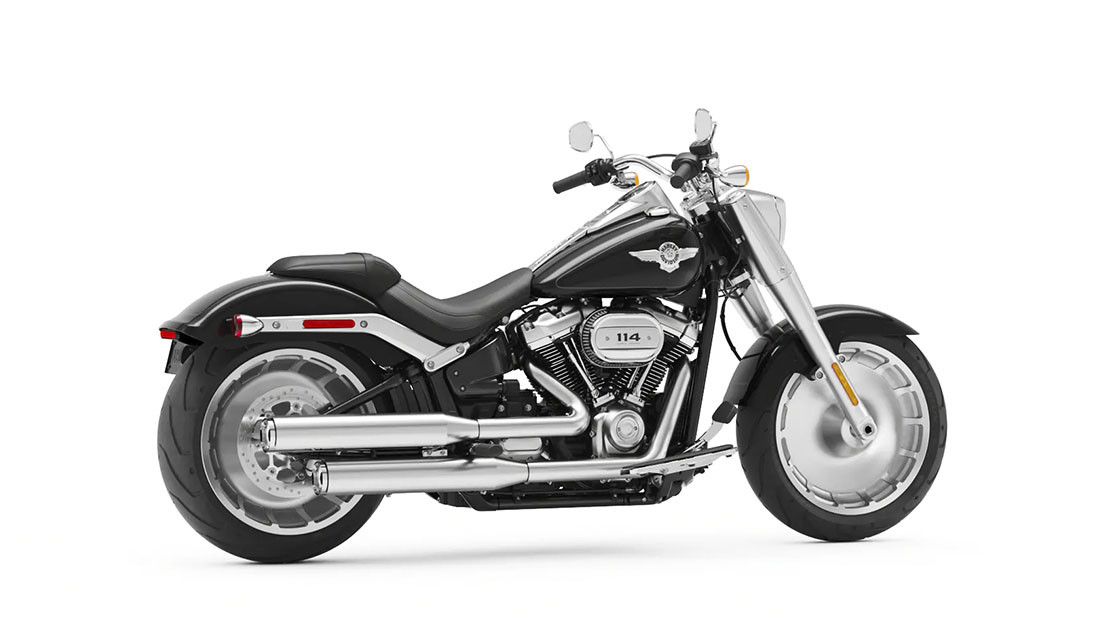

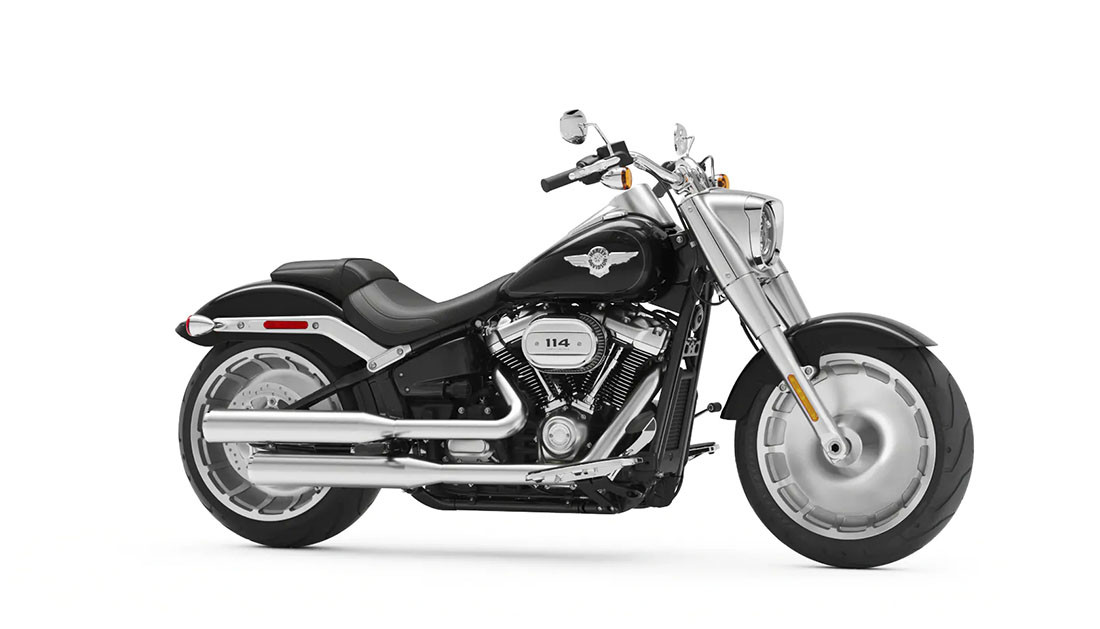

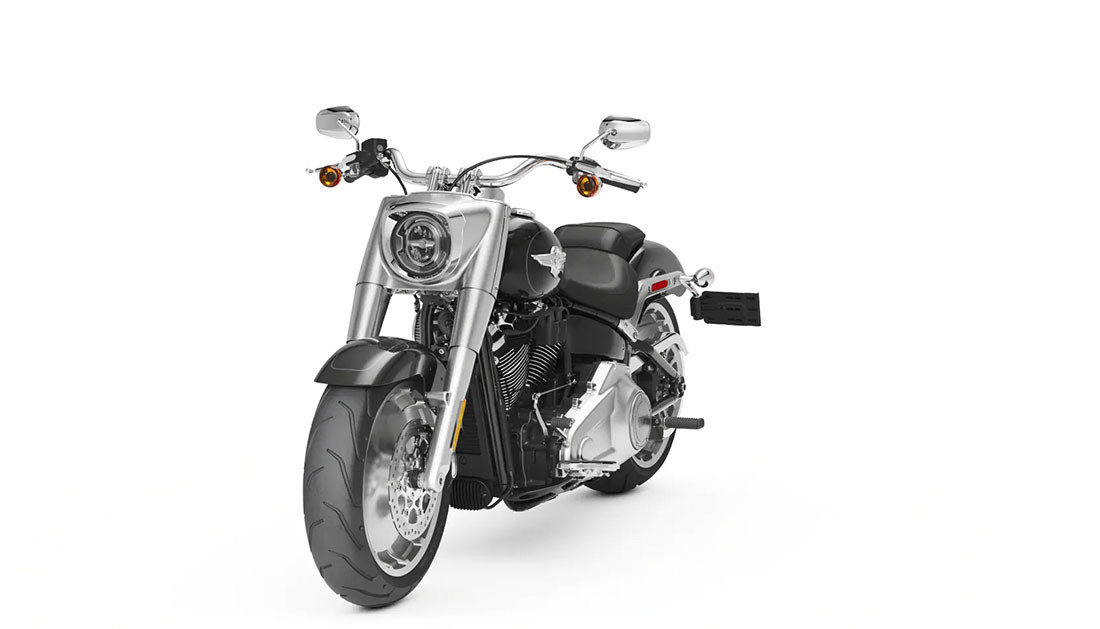

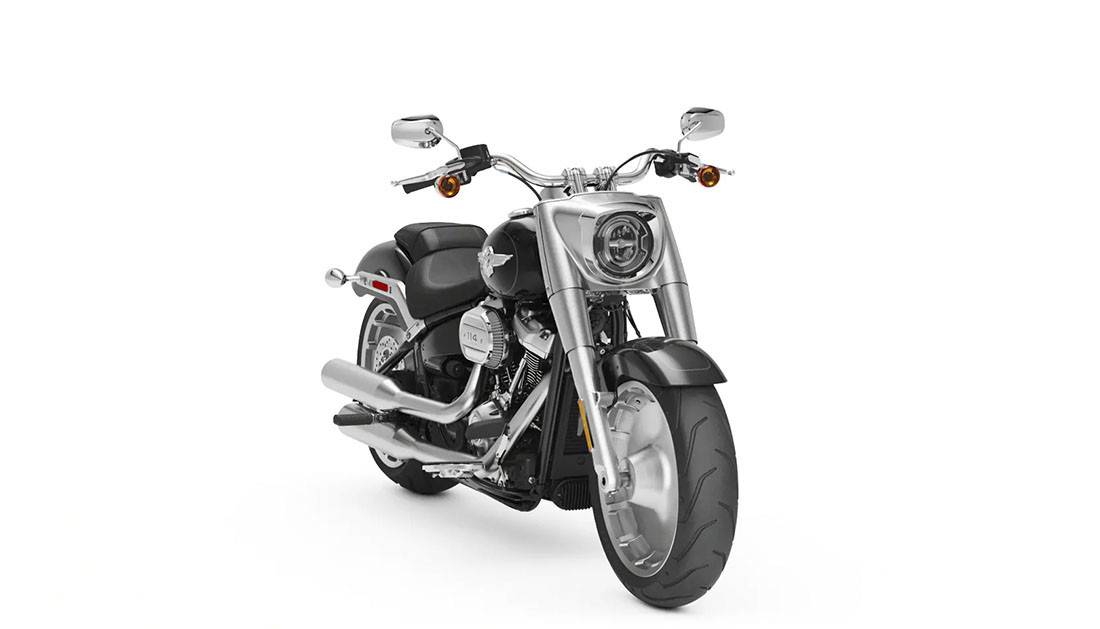

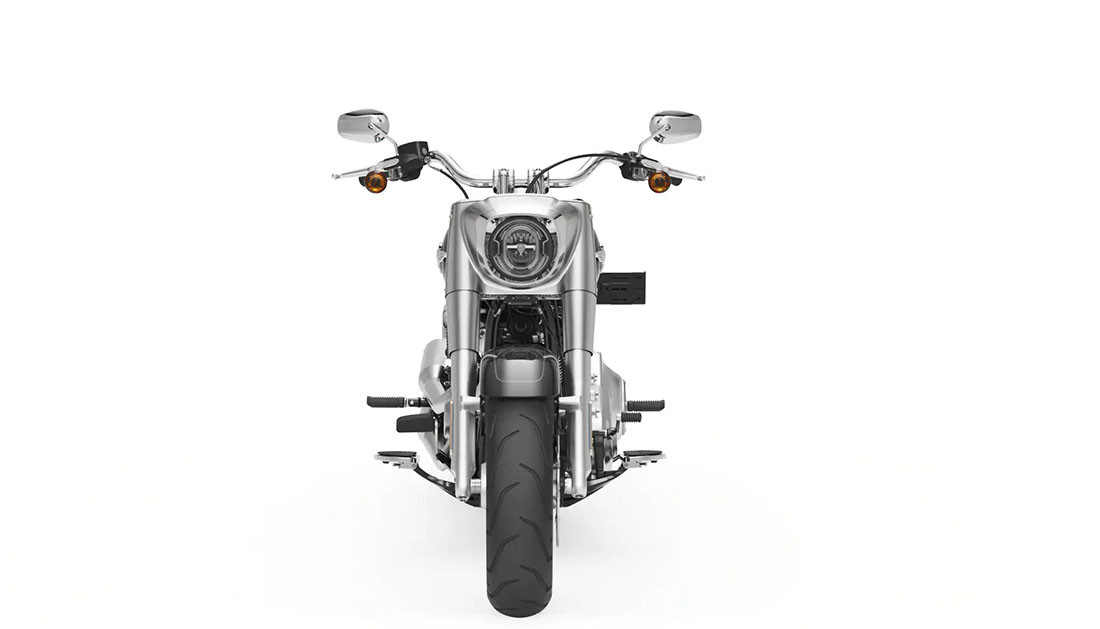

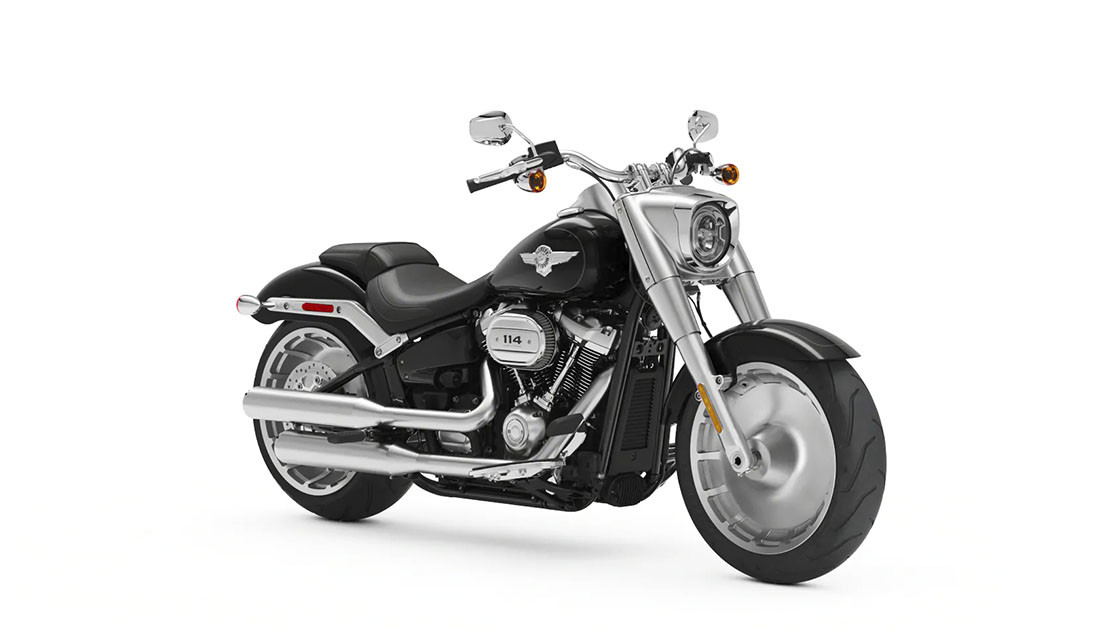

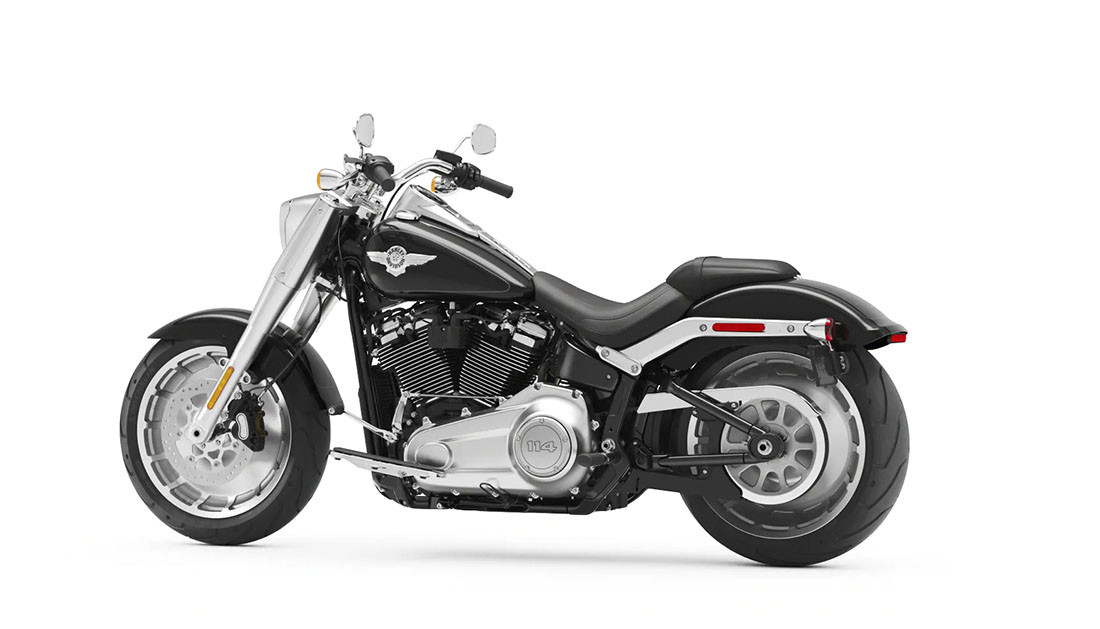

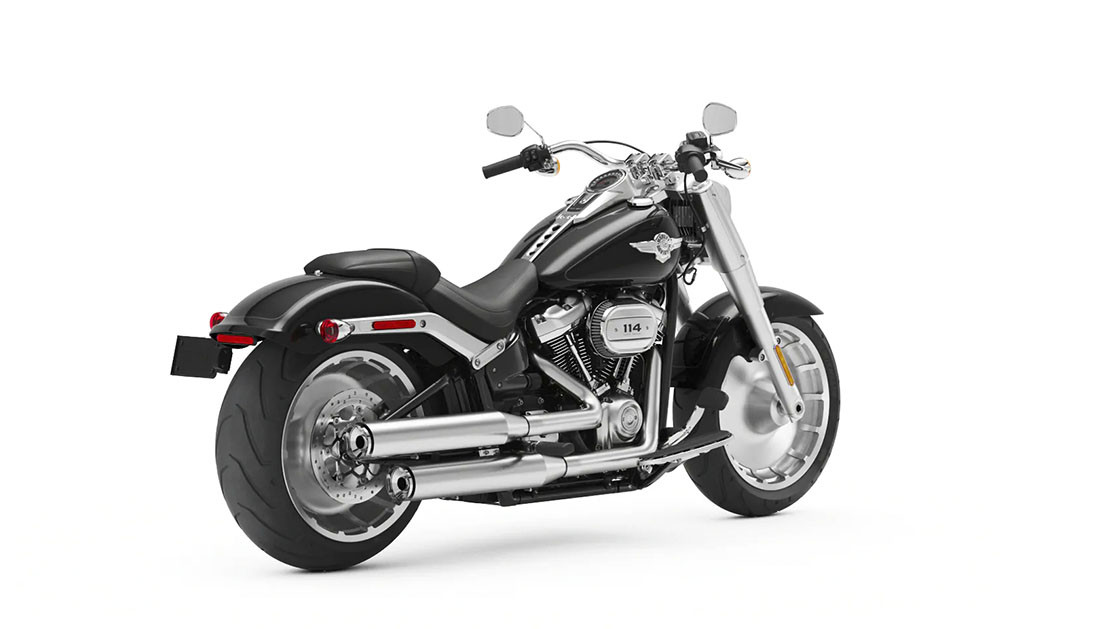

The name may be Fat Boy®, but the look is all muscle. This is the icon, riding on a 240mm rear tyre, 160mm front tyre and solid disc wheels. You get satin chrome finishes and signature LED lighting. This version is 14 kilograms lighter than the previous generation Fat Boy models, and its slinging torque from a Milwaukee-Eight® 107 or 114 engine. You’ll notice the difference the instant you crack the throttle. Sometimes a bike comes along that changes the landscape. The Fat Boy is one of them.

Available in 107 (1745cc) and 114 (1868cc) engine displacements.

Disclaimer

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

Specifications

Length 93.3in
Fuel Capacity 5.0gal
Ground clearance 4.5in
Seat Height 25.9in
Trail 4.1in
Wheelbase 1,665mm
Tires, front specifications 160/60R18,70V,BW
Tires, rear specifications 240/40R18,79V,BW
Oil capacity 5qt. / 1.2gal
Weight, as shipped 670lbs
Weight, in running order 699lb / 699lbs
Engine Milwaukee-Eight® 114
Bore 4.0in
Stroke 4.5in
Displacement 113.99in3
Compression ratio 10.5:1
Fuel system Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust 2-into-2 staggered; catalyst in muffler
Primary drive (*Cert) Chain, 34/46 ratio
Gear Ratios (overall) 1st (*Cert) 9.311
Gear Ratios (overall) 2nd (*Cert) 6.454
Gear Ratios (overall) 3rd (*Cert) 4.793
Gear Ratios (overall) 4th (*Cert) 3.882
Gear Ratios (overall) 5th (*Cert) 3.307
Gear Ratios (overall) 6th (*Cert) 2.79
Engine torque testing method J1349
Engine torque (*Cert) 118.7ft-lb
Lean angle, right (deg.) 25.6
Lean angle, left (deg.) 25.6
Fuel economy testing method Estimated City/Hwy
Fuel economy 5l/100 km / 47mpg
Wheels, front type Machined, Lakester cast aluminum
Wheels, rear type Machined, Lakester cast aluminum
Brakes, caliper type 4-piston fixed front and 2-piston floating rear
Lights (as per country regulation), Indicator Lamps High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
Gauges 5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
Vivid Black
Barracuda Silver
Midnight Blue
Stiletto Red
Spruce
River Rock Gray/Vivid Black
Barracuda Silver Denim/Black Denim
Zephyr Blue/Black Sunglo
