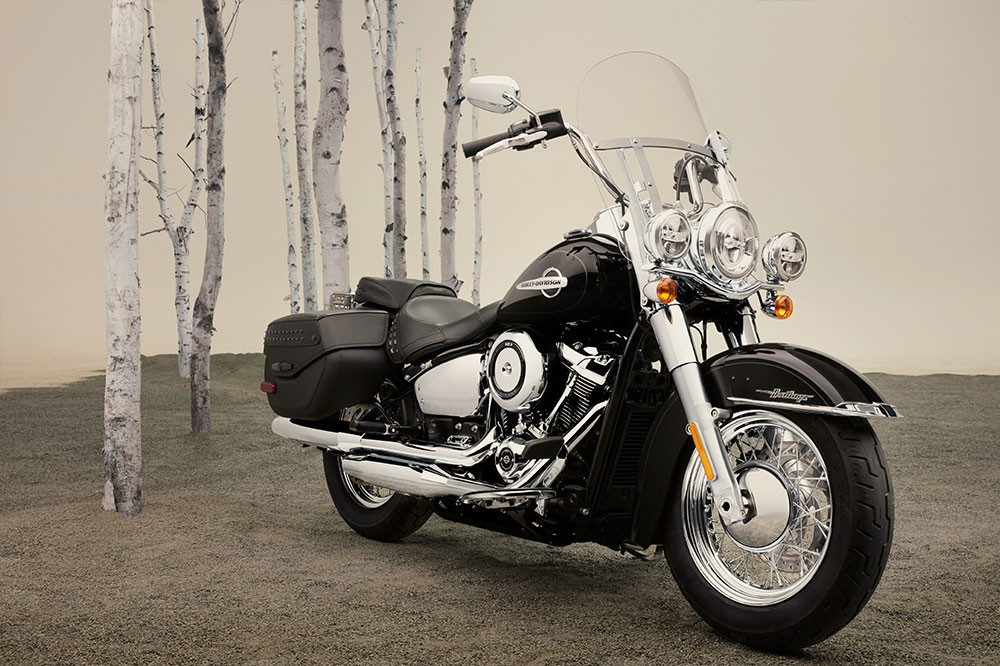

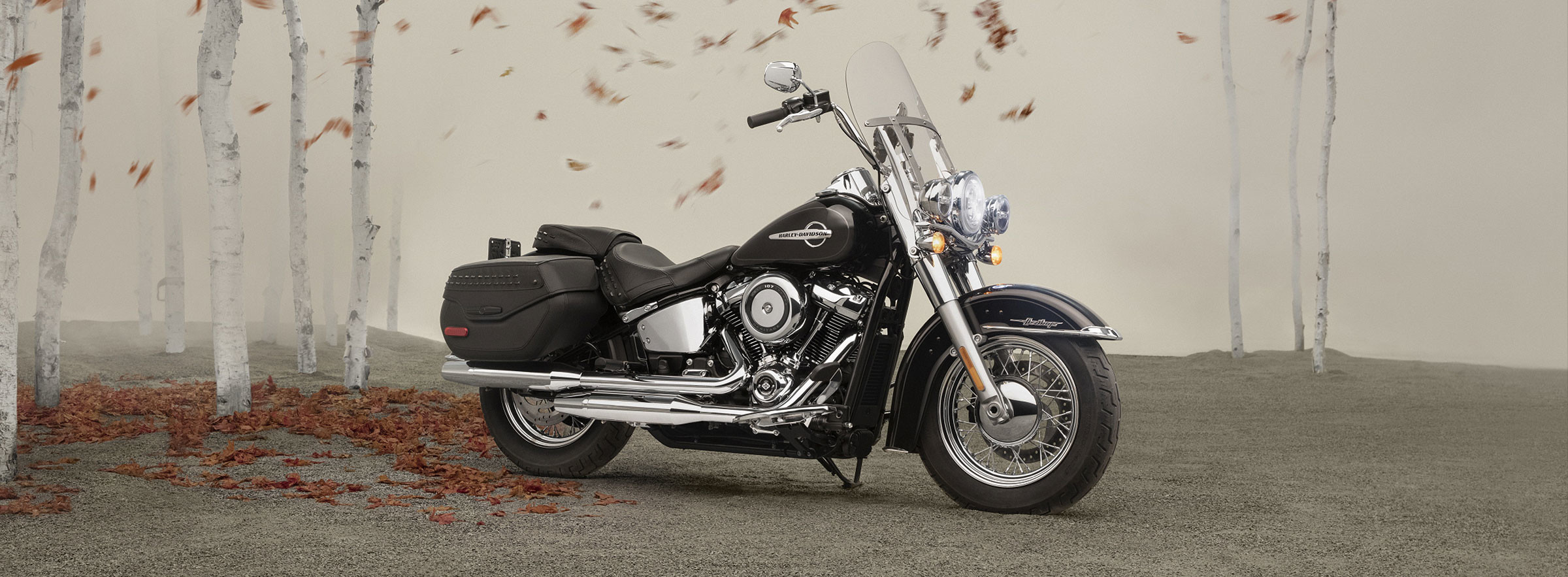

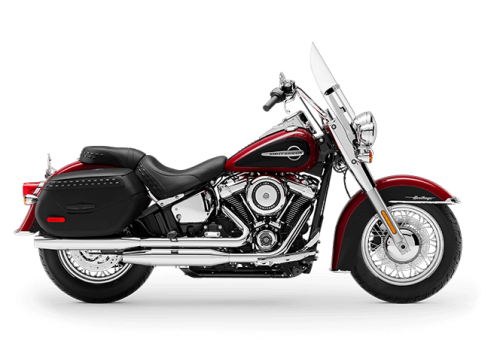

Heritage Classic 107
Heritage Classic 107

Heritage Classic 107

Book test ride Request details Value My Trade

Description

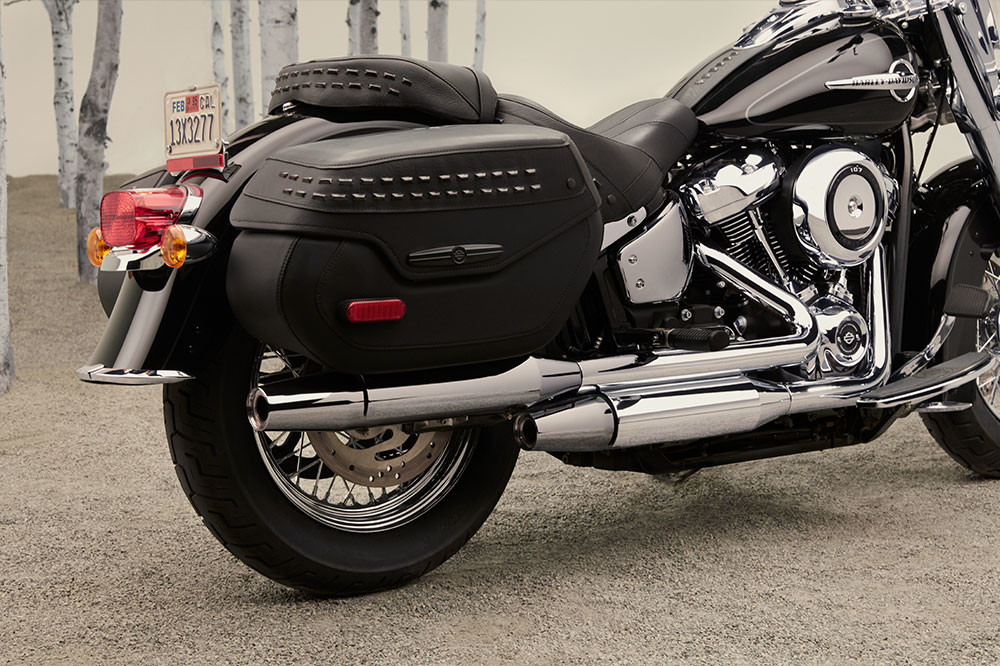

The refined gloss-black finishes, modern edge and reinvigorated ride of the Heritage model take nostalgia ripping into a new place. It starts with the performance of the Milwaukee-Eight® 107 or 114 engine and the re-invented Softail® frame and suspension. The ride will put a big smile on your face. On top of that, you get a look that drips with gangster-era style. And practical features like a windshield and hard saddlebags for light touring. Tradition is good, but it doesn’t mean sitting still. Available in 107 (1745cc) and 114 (1868cc) engine displacements.

Disclaimer

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

Specifications

Length 95.1in
Fuel Capacity 5.0gal
Ground clearance 4.7in
Seat Height 26.8in
Rake (steering head) (deg) 30
Trail 5.5in
Wheelbase 64.2in
Tires, front specifications 130/90B16,73H,BW
Tires, rear specifications 150/80B16,77H,BW
Oil capacity 5qt.
Weight, as shipped 697lbs
Weight, in running order 728lb
Luggage capacity – Volume 1.5 cu ft (0.043 m3)
Engine Milwaukee-Eight® 107
Bore 3.9in
Stroke 4.4in
Displacement 106.55in3
Compression ratio 10.0:1
Fuel system Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust 2-into-2 shorty dual; catalyst in muffler
Primary drive (*Cert) Chain, 34/46 ratio
Gear Ratios (overall) 1st (*Cert) 9.311
Gear Ratios (overall) 2nd (*Cert) 6.454
Gear Ratios (overall) 3rd (*Cert) 4.793
Gear Ratios (overall) 4th (*Cert) 3.882
Gear Ratios (overall) 5th (*Cert) 3.307
Gear Ratios (overall) 6th (*Cert) 2.79
Engine torque testing method J1349
Engine torque (*Cert) 109.2ft-lb
Lean angle, right (deg.) 27.3
Lean angle, left (deg.) 28.5
Fuel economy testing method Estimated City/Hwy
Fuel economy 5l/100 km / 47mpg
Wheels, front type Chrome Steel Laced
Wheels, rear type Chrome Steel Laced
Brakes, caliper type 4-piston fixed front and 2-piston floating rear
Lights (as per country regulation), Indicator Lamps High beam, turn signals, neutral, low oil pressure, engine diagnostics, auxilary lighting, cruise, ABS, security, low battery voltage, low fuel
Gauges 5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
Vivid Black
Billiard Burgundy
Silver Pine/Spruce
Billiard Red/Vivid Black
Tahitian Teal

Inventory

FLHC 2020 Heritage Classic 107

  • Condition: New
  • Year: 2020
  • Color: BILIARD BURGNDY W/PINSTRIPE
