SuperLow<sup>®</sup>
SuperLow<sup>®</sup>

SuperLow®

Description

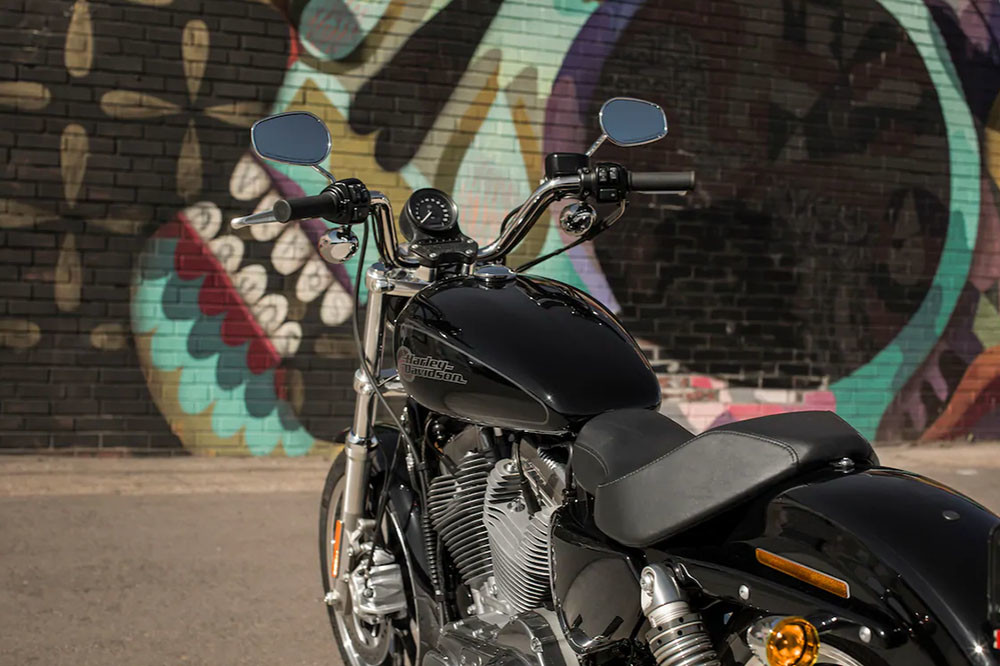

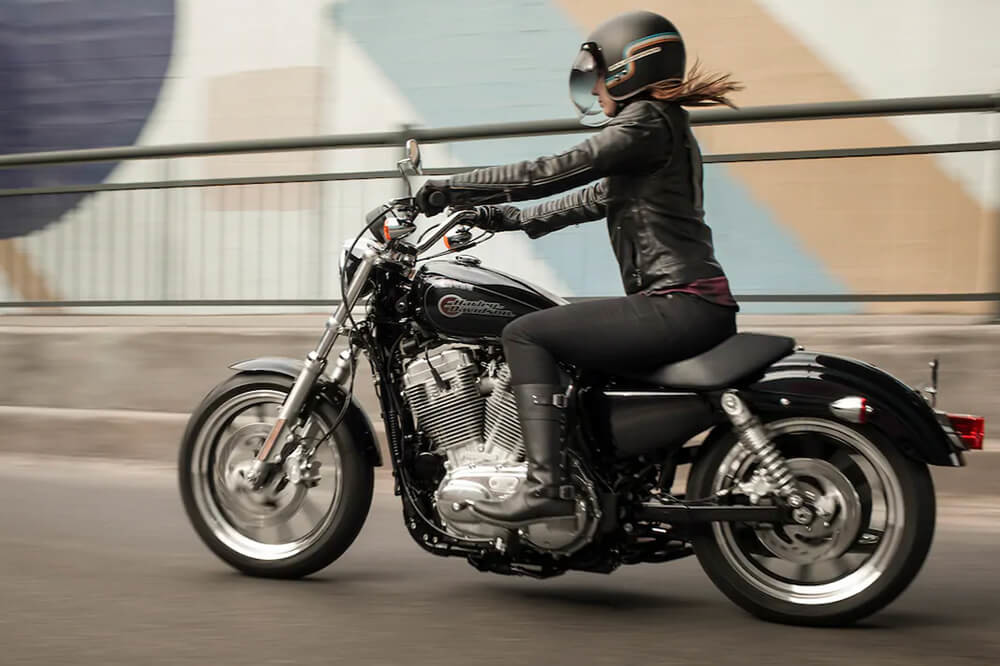

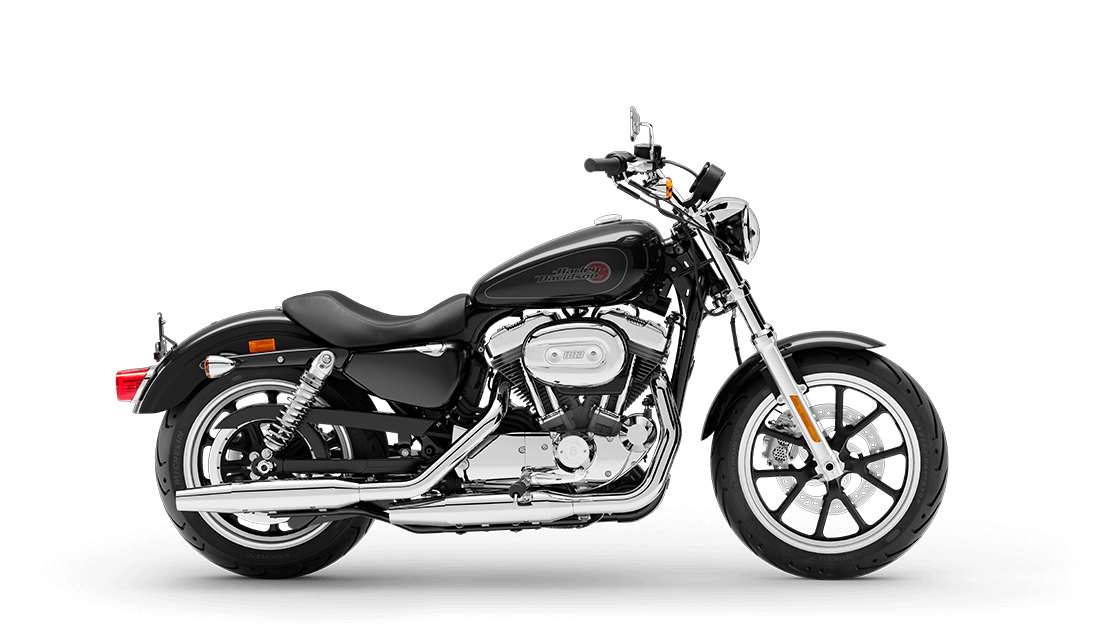

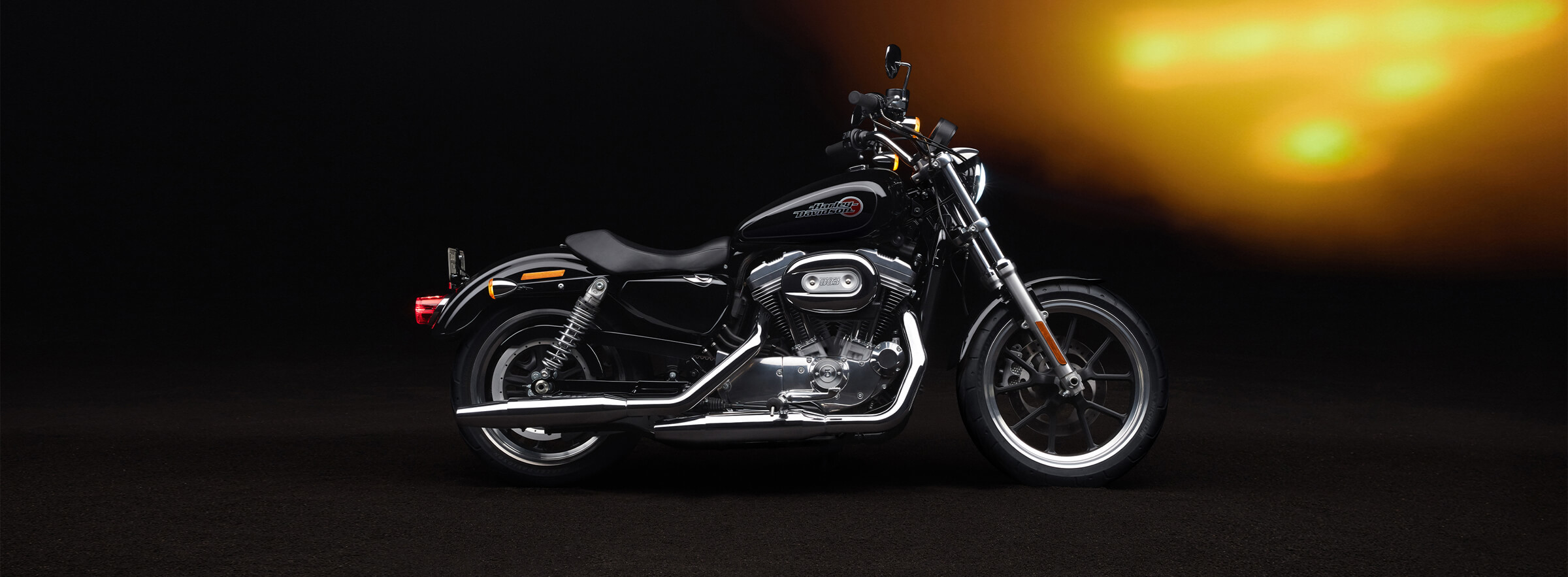

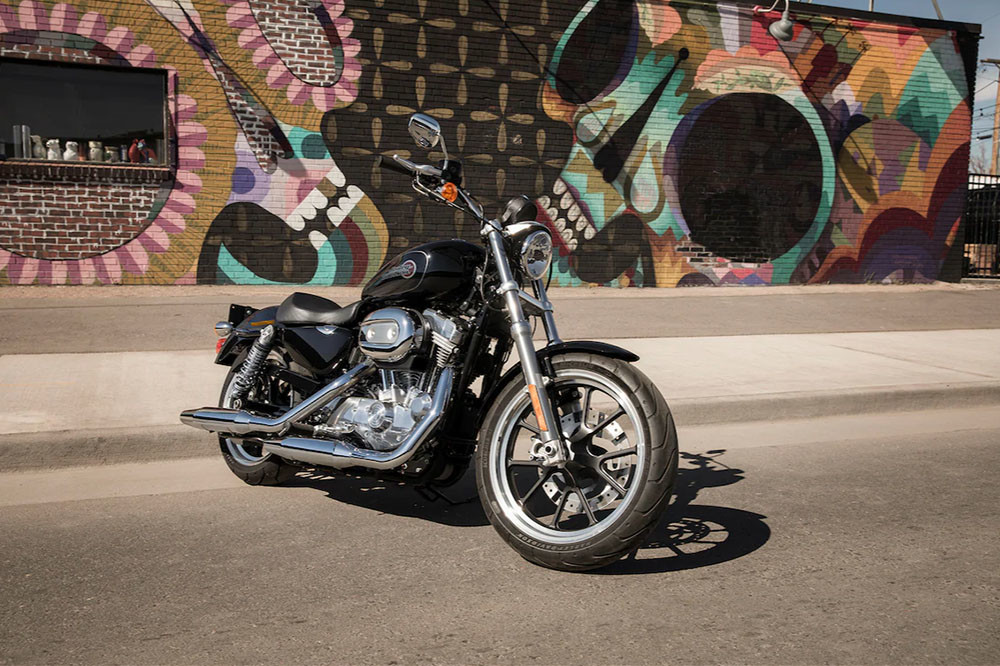

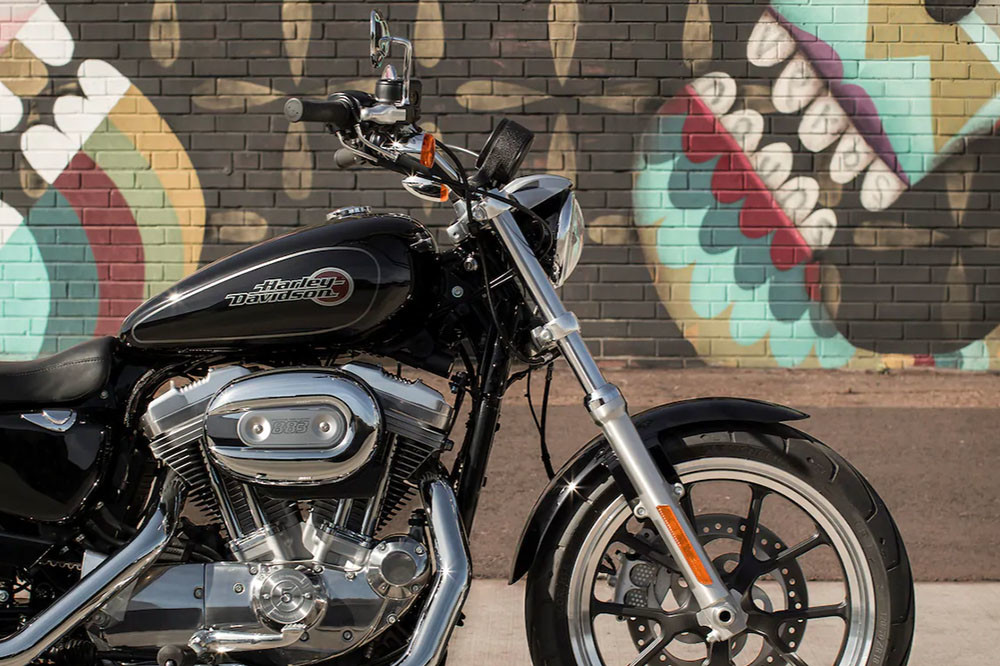

Easy riding is where the Superlow® model puts miles between itself and all the rest. It starts with the low seat and low centre of gravity that gives it its name. It puts you close to the road and gives you a well-balanced stance for confidence in the saddle. The handling is easy, and you have the comfort to go all day. Just dial in the adjustable suspension, unleash the torque of the 883 Evolution® engine, and let the miles roll by.

Disclaimer

Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

Specifications

Length 87.6in
Fuel Capacity 4.5gal
Ground clearance 3.9in
Rake (steering head) (deg) 31.1
Trail 5.7in
Wheelbase 59.1in
Tires, front specifications 120/70 ZR-18 59W
Tires, rear specifications 150/60 ZR-17 66W
Weight, as shipped 545lbs
Weight, in running order 258 kg
Engine Air-cooled, Evolution™
Bore 3.0in
Stroke 3.8in
Displacement 53.88in3
Compression ratio 9:01
Fuel system Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust Chrome, staggered, shorty exhaust with dual mufflers
Primary drive (*Cert) Chain, 38/57
Gear Ratios (overall) 1st (*Cert) 9.315
Gear Ratios (overall) 2nd (*Cert) 6.653
Gear Ratios (overall) 3rd (*Cert) 4.948
Gear Ratios (overall) 4th (*Cert) 4.102
Gear Ratios (overall) 5th (*Cert) 3.517
Engine torque testing method EC 134/2014
Engine torque (*Cert) 50.9ft-lb
Horsepower 52 PS / x39 Kw @ 5750 rpm
Lean angle, right (deg.) 24.7
Lean angle, left (deg.) 24.4
Fuel economy testing method EU 134/2014
CO2 emissions testing method EU 134/2014
CO2 emissions 111 g/km CO2
Wheels, front type Black, Split 5-Spoke with Machined Rim
Wheels, rear type Black, Split 5-Spoke with Machined Rim
Brakes, caliper type Dual-piston front, Dual-piston rear
Lights (as per country regulation), Indicator Lamps High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system, ABS
Gauges Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
Vivid Black
Barracuda Silver
River Rock Gray/Vivid Black
