Thunder Tower West Harley-Davidson®
1384 Southlake Parkway, Morrow, GA 30260
| Stock number: | 20-857754 |
| VIN number: | 1HD1MAF18LB857754 |
| Family: | Trike |
| Condition: | New |
| Year: | 2020 |
| Mileage: | 7mi |
| Color: | Tahitian Teal |

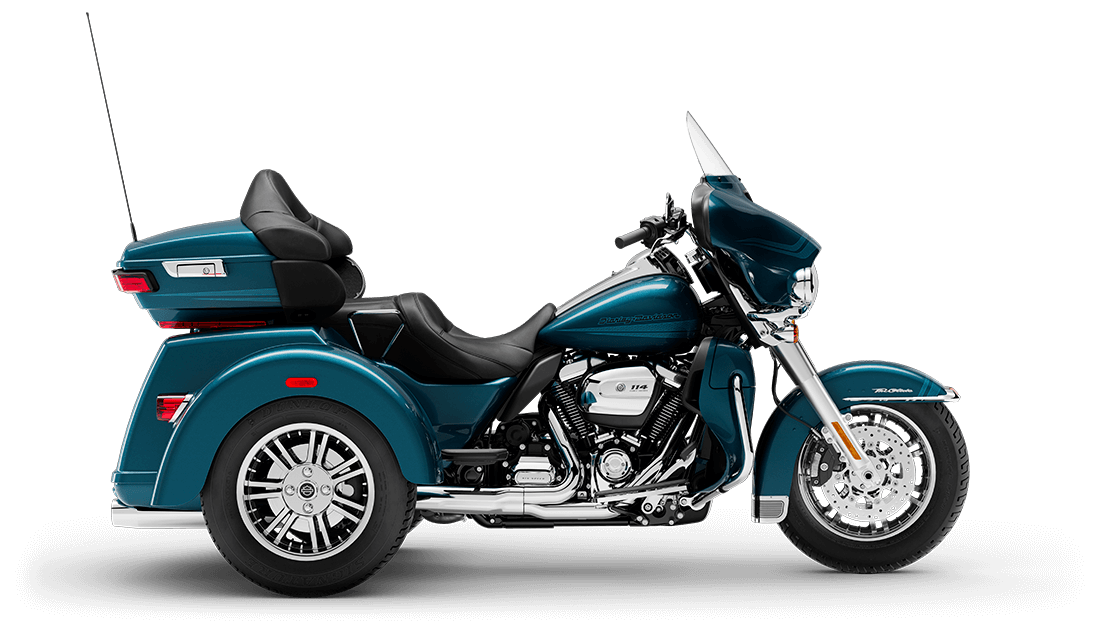

The Tri Glide® Ultra will make sure you stay grounded in mind and body with its additional wheel for confidence and comfort. The optional trike-specific Reflex™ Defensive Rider Systems with tire-pressure monitoring and H-D™ Connect give you direct contact with everything between you and the road—whether you're on your trike or off. A Milwaukee-Eight® 114 engine brings this machine to life, while 6.8 cubic feet of storage space makes it so you can escape the real world without leaving the comforts of home behind.
| Length: | 105.1in |
| Fuel Capacity: | 6.0gal |
| Ground clearance: | 4.9in |
| Seat Height: | 27.1in |
| Rake (steering head) (deg): | 26 |
| Trail: | 3.9in |
| Wheelbase: | 1,670.0in |
| Tires, front specifications: | MT90B16 72H |
| Tires, rear specifications: | P205/65R15 92T |
| Oil capacity: | 5qt. |
| Weight, as shipped: | 1,204lbs |
| Weight, in running order: | 1,243 lb. (564 kg) |
| Luggage capacity – Volume: | 6.8 cu ft (0.19 m3) |
| Engine: | Twin-Cooled™ Milwaukee-Eight® 114 |
| Bore: | 4.0in |
| Stroke: | 4.5in |
| Displacement: | 113.99in3 |
| Compression ratio: | 10.5:1 |
| Fuel system: | Electronic Sequential Port Fuel Injection (ESPFI) |
| Exhaust: | Chrome, 2-1-2 dual exhaust with tapered mufflers |
| Primary drive (*Cert): | Chain, 34/46 ratio |
| Gear Ratios (overall) 1st (*Cert): | 10.534 |
| Gear Ratios (overall) 2nd (*Cert): | 7.302 |
| Gear Ratios (overall) 3rd (*Cert): | 5.423 |
| Gear Ratios (overall) 4th (*Cert): | 4.392 |
| Gear Ratios (overall) 5th (*Cert): | 3.741 |
| Gear Ratios (overall) 6th (*Cert): | 3.157 |
| Engine torque testing method: | J1349 |
| Engine torque (*Cert): | 121.0ft-lb |
| Fuel economy: | 5.6l/100 km |
| Wheels, front type: | Black, 7-spoke Cast Aluminum |
| Wheels, rear type: | Black, 7-spoke Cast Aluminum |
| Brakes, caliper type: | Front: 32mm 4 piston fixed Rear: floating 36mm piston integrated park brake |
| Lights (as per country regulation), Indicator Lamps: | High Beam, running lights, front fender running lights, directional lights, battery, neutral, low oil pressure, engine diagnostics, cruise control, security system, low fuel warning, reverse, park brake, fog/aux lamp indicator |
| Gauges: | Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator |
| Infotainment system: | Boom!™ Box GTS |
| Type: | Full Color TFT |
| Watts per channel: | 25 |
| Speakers: | 4 |
| Speaker size: | 5.25 inch/6.5 inch P&A Upgrade |
| Headset specifications (if equipped): | 16 - 64 ohms |
| AM: | Standard |
| FM: | Standard |
| Weather Band (WB): | Standard |
| SD Card, Flash Drive and MP3 - via USB Connection: | Supported |
| SiriusXM Presets: | 20 - P&A Upgrade (USA & Canada only) |
| Languages: | English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese |
| Hands-free Mobile Phone - via Bluetooth: | Standard |
| Voice Recognition Languages: Phone functions only: | English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese |
| Voice Recognition Languages: Tuner / Media / Navigation: | English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese |
| Rider/Passenger Intercom: | Standard |
| Vehicle information screen: | Standard |
| Text-to-Speech (TTS) Languages: | English (US/UK)GermanSpanish (Mexico/Spain)French (Canada/France)ItalianPortuguese (Portugal/Brazil)RussianCzechPolishDutchTurkishJapanese |
| USB: | USB/MTP/iPod/iPhone |
| Bluetooth: | Phone/Media Supported |
